LIAN LI 12KW WATER COOLING KIT FOR HYDRO ASICS

Description

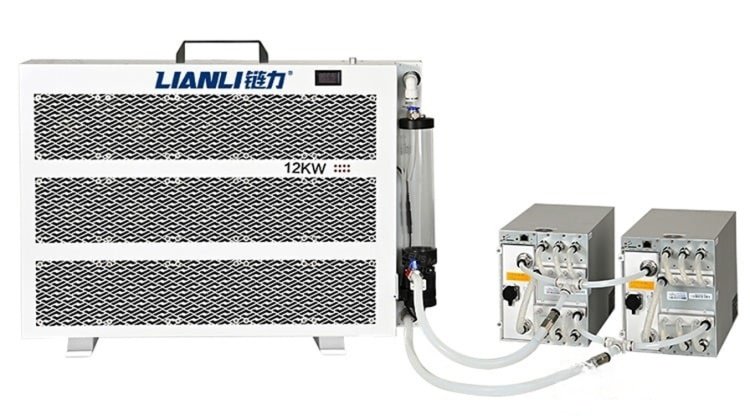

The Lian Li 12 kW Hydro Cooling Kit is a self-contained water-cooling radiator unit engineered for two miners—ideal for native hydro models (e.g., S19 Hyd / S21 Hyd, WhatsMiner M53/M53S, M33S+/M33S++) or air-cooled rigs converted to hydro. It features an integrated high-power pump, manual pressure-relief valve, and a built-in 220 V power supply so you can start with a single button—no external PSU wiring required. Auto fan curves keep water temperatures in check while maintaining low noise. Next Level Corp provides local sales and official support for a smooth setup and ongoing maintenance.

Highlights
• 12 kW cooling capacity — supports two hydro miners (see notes)
• All-in-one chassis: integrated pump, reservoir, radiator, and 220 V PSU
• High flow: ~11 L/min; wide 0–6000 rpm control range
• 4 control modes: manual speed or three auto curves by water temp
• Quiet-to-industrial acoustics: ~20–75 dB (mode-dependent)
• 12 mm inlet/outlet (standard 12 mm ID silicone tubing)
• Compatible with Antminer / Whatsminer / IceRiver / Avalon / Innosilicon hydro miners and most air-to-hydro conversions

━━━━━━━━━━ SPECIFICATIONS ━━━━━━━━━━
Manufacturer: Lian Li
Model: 12 kW Hydro Cooling Kit (Dual-miner)
Function: Water cooling for ASIC miners (hydro or converted)
Cooling capacity: up to 12 kW (tested ambient 33 °C)
Power (radiator unit): ~0.5 kW (fans/pump)
Operating power scenario: ~11 kW system load (example)
Pump/fan speed: 0–6000 rpm
Flow rate: ~11 L/min
Noise: ~20–75 dB (mode-dependent)
Water temp setpoints (auto modes):
• Mode 2: <25 °C 0 % | 25–30 °C 25 % | 30–35 °C 50 % | 35–40 °C 75 % | >40–42 °C 100 %
• Mode 3: <25 °C 0 % | 25–35 °C 25 % | 35–45 °C 50 % | 45–55 °C 75 % | >55–65 °C 100 %
• Mode 4: Target 35 °C (fans off below, on above)
Tubing: 12 mm ID (inlet/outlet)
Fluid capacity (fill): ≈ 8 L (pure water or coolant)
Power input: 220 V, C14 inlet (use C13 cable)
Chassis size: 750 × 220 × 580 mm
Package size: 820 × 710 × 240 mm
Net/Gross weight: 21 kg / 24 kg
Measured radiator outlet temp: ≈ 46.6 °C (test ambient 33 °C)

Notes
• Use below ~25 °C ambient for dual-miner operation; higher ambients reduce capacity.
• Fill with pure water or appropriate coolant; fully seat the inlet tube in the pump to minimize bubbles and cavitation.
• Verify hose size (12 mm ID) and fittings for your miner model; adapters may be required.
• For air-to-hydro conversions, ensure proper cold-plate kits and leak-testing procedures.
• Always leak-test and monitor water temps; maintain coolant quality per manufacturer guidance.

Your purchase includes (Next Level Corp)
• Installation and setup (pump priming, hose routing, leak-test).
• Pool/wallet configuration guidance (if paired with miners).
• Lifetime 24/7 technical advice.
• Genuine spare parts available and guaranteed.
• Service and technical support (the only official technical support in Bolivia).
• 1-year manufacturer’s warranty (radiator unit); miner warranties per device.
