Description

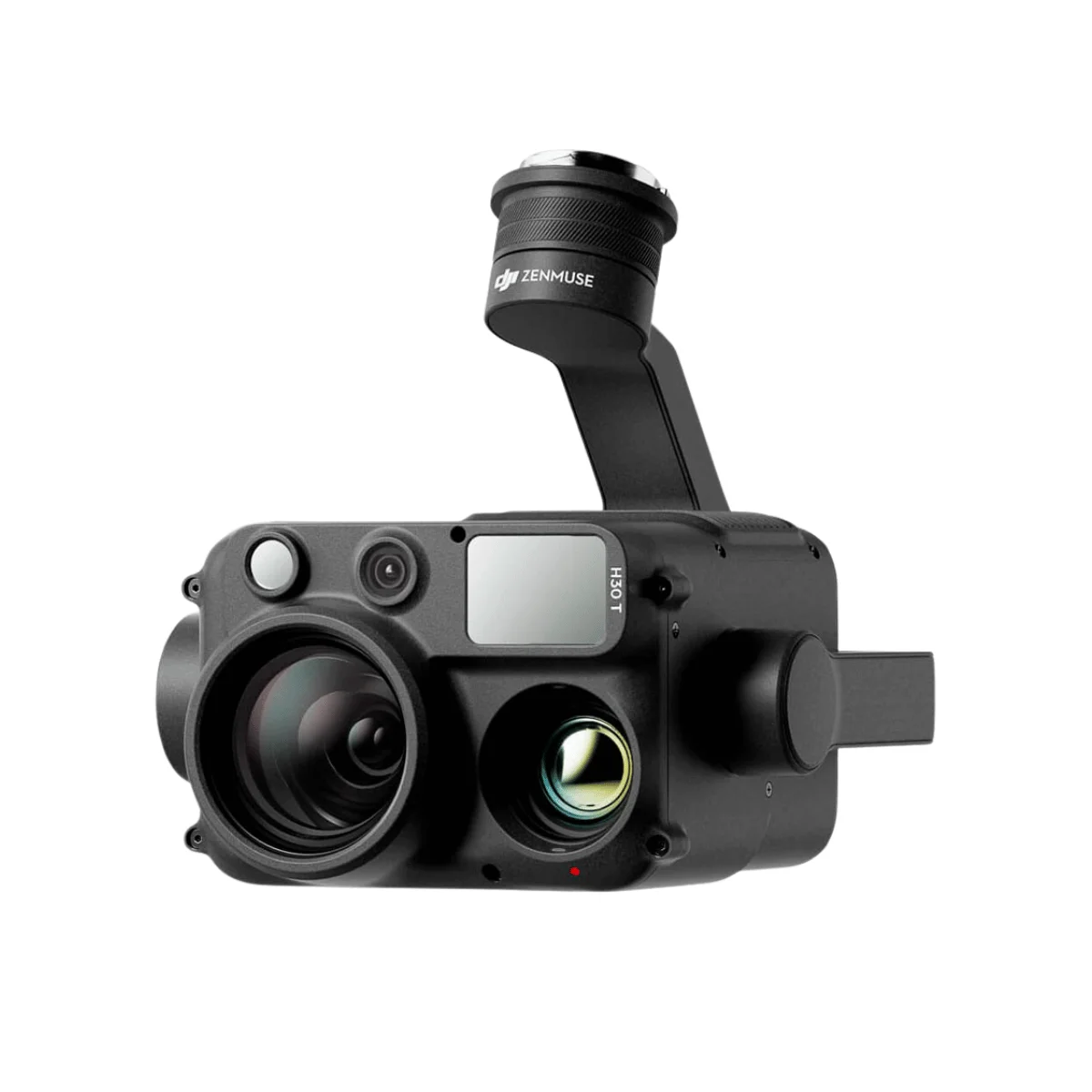

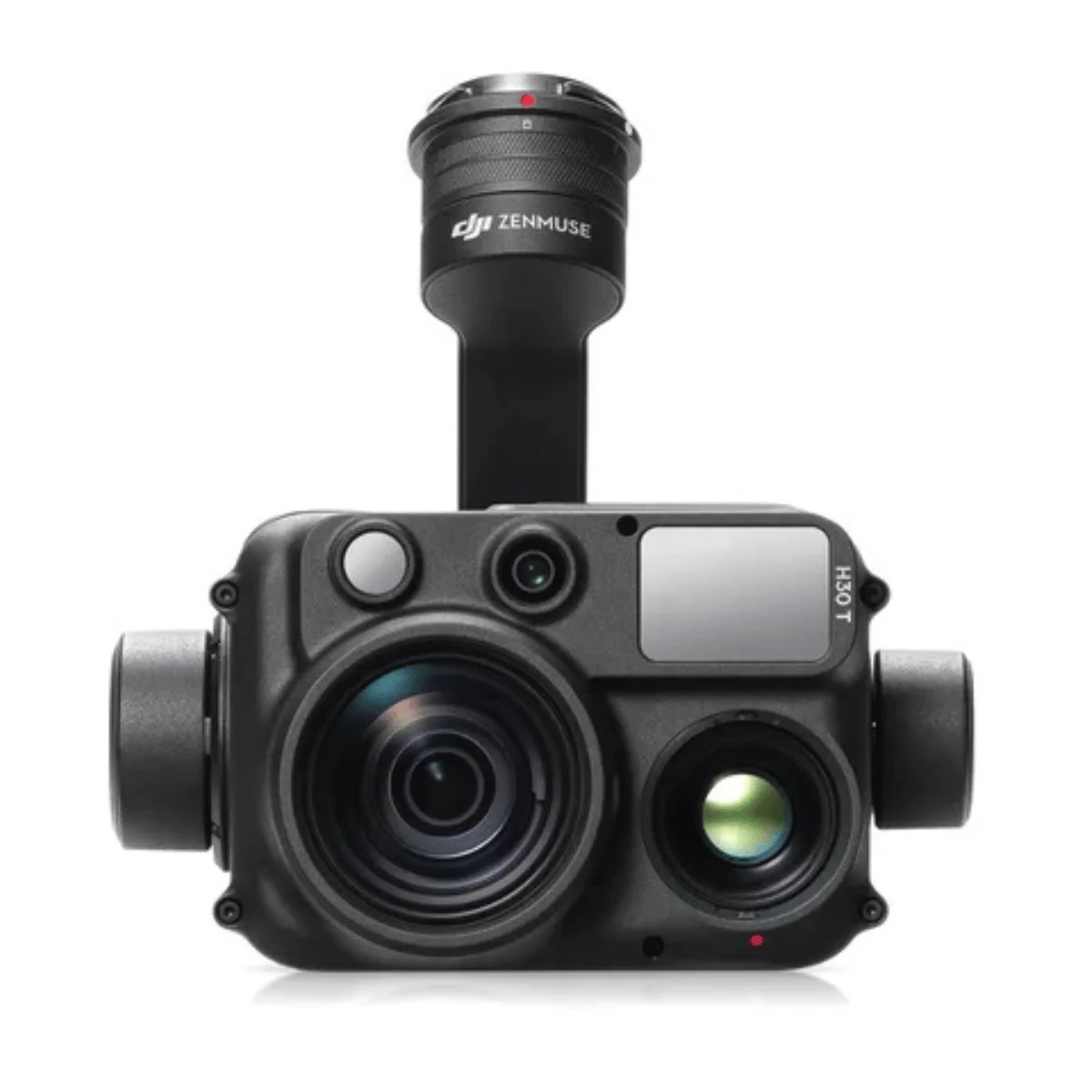

The DJI Zenmuse H30T is the flagship, all-weather multi-sensor payload in the H30 series, integrating a wide camera, a 40 MP zoom camera (up to 34× optical / 400× max), a thermal infrared camera, a 905 nm laser rangefinder (3–3000 m), and a NIR auxiliary light. With next-gen AI enhancements and dedicated night-scene modes, H30T delivers clear intelligence for public safety, energy/utility inspection, water management, and forestry—day or night.
SPECIFICATIONS — Zenmuse H30T
| Manufacturer | DJI |
| Model | Zenmuse H30T |
| Sensors |
Wide camera, 40 MP zoom camera, Thermal IR camera, 905 nm laser rangefinder, NIR auxiliary light |
| Zoom (zoom camera) |
Up to 34× optical, 400× maximum (hybrid); 40 MP sensor |
| Laser rangefinder |
Range 3–3000 m; precision ≤500 m: ±(0.2 m + 0.15%), >500 m: ±1.0 m; Class 1 |
| Thermal camera (H30T) |
Uncooled VOx microbolometer; 24 mm eq. ~52 mm; f/0.95; 1280×1024@30 fps; NETD ≤50 mK; temperature ranges (HG) −20–150 °C, −20–450 °C (with IR-ND); (LG) 0–600 °C, 0–1600 °C (with IR-ND); spot/area/center metering |
| Night & AI features |
Night Scene (wide & zoom), E-defog, Background stabilization, Smart Track, AI Spot Check, Timestamp, Pre-record |
| Ingress protection | IP54 (lab conditions) |
| Operating temperature | −20 to 50 °C (−4 to 122 °F) |
| Power / Weight / Size |
~28 W; ~920 g; 170 × 145 × 165 mm |
| Gimbal & stabilization |
3-axis; angular vibration (hover) ±0.002°; controllable tilt −120° to +60°, pan ±320° |
| Media & storage |
Video MP4 (H.264/H.265), Photo JPG; supports microSD (U3/V30+) and CFexpress Type-B (bundle dependent) |
| Compatible aircraft |
Matrice 300 RTK (with DJI RC Plus), Matrice 350 RTK |
WHAT’S IN THE BOX — Zenmuse H30T
| Zenmuse H30T payload | × 1 |
| Single gimbal connector (H30/H30T) | × 1 |
| Hard carrying case | × 1 |
| Gimbal dampers | × 4 |
| CFexpress Type-B card / reader (if included) | × 2 / × 1 |
| Lens cleaning cloth; screws & tools kit | × 1 each |
| DJI Care Enterprise Plus (12-month) | Pre-activated |
Notes
• Performance depends on target reflectivity, ambient light, weather, and aircraft settings.
• IP rating applies in lab conditions; sealing effectiveness can diminish with wear.
• Comply with local regulations for thermal imaging, data security, and laser devices (Class 1).
