Description

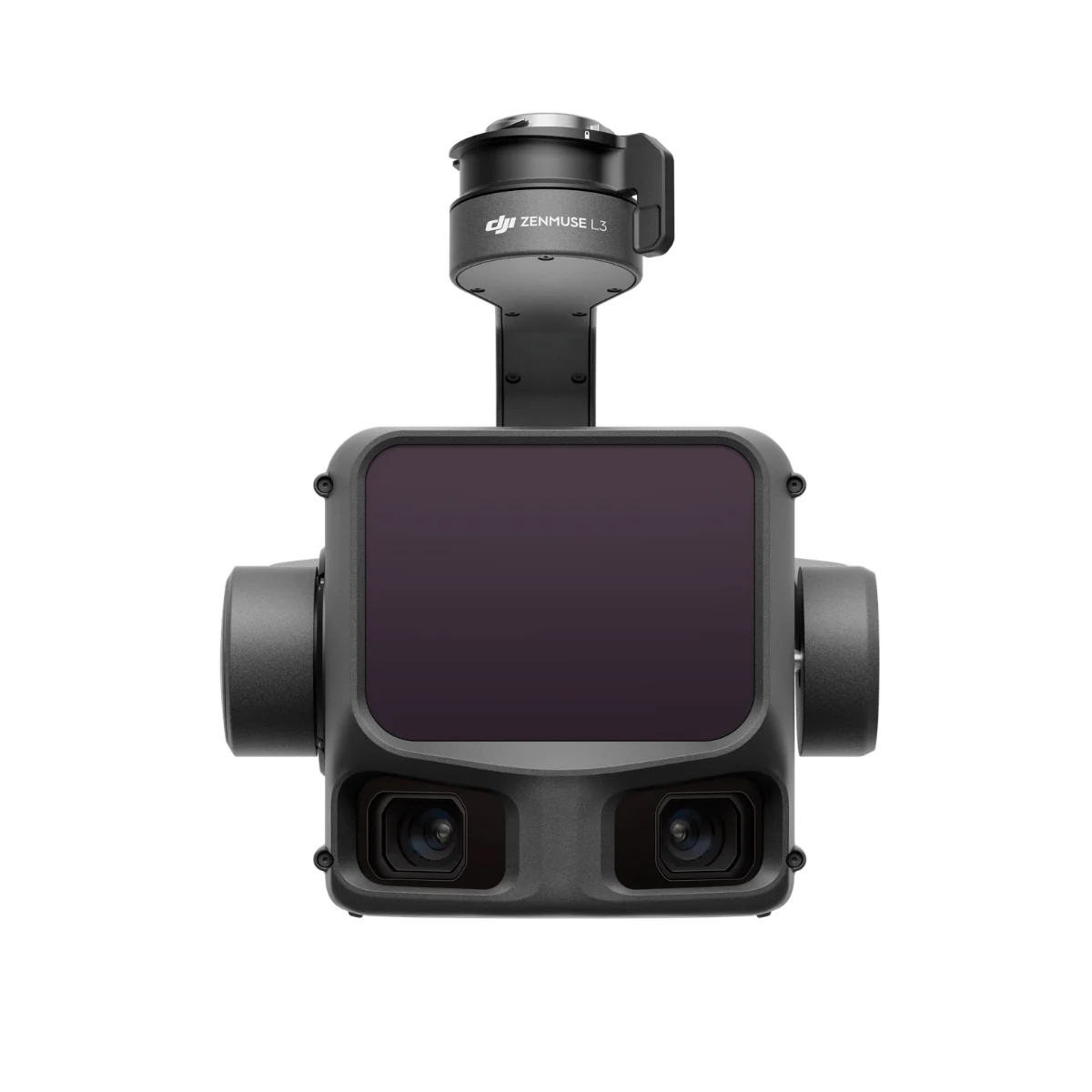

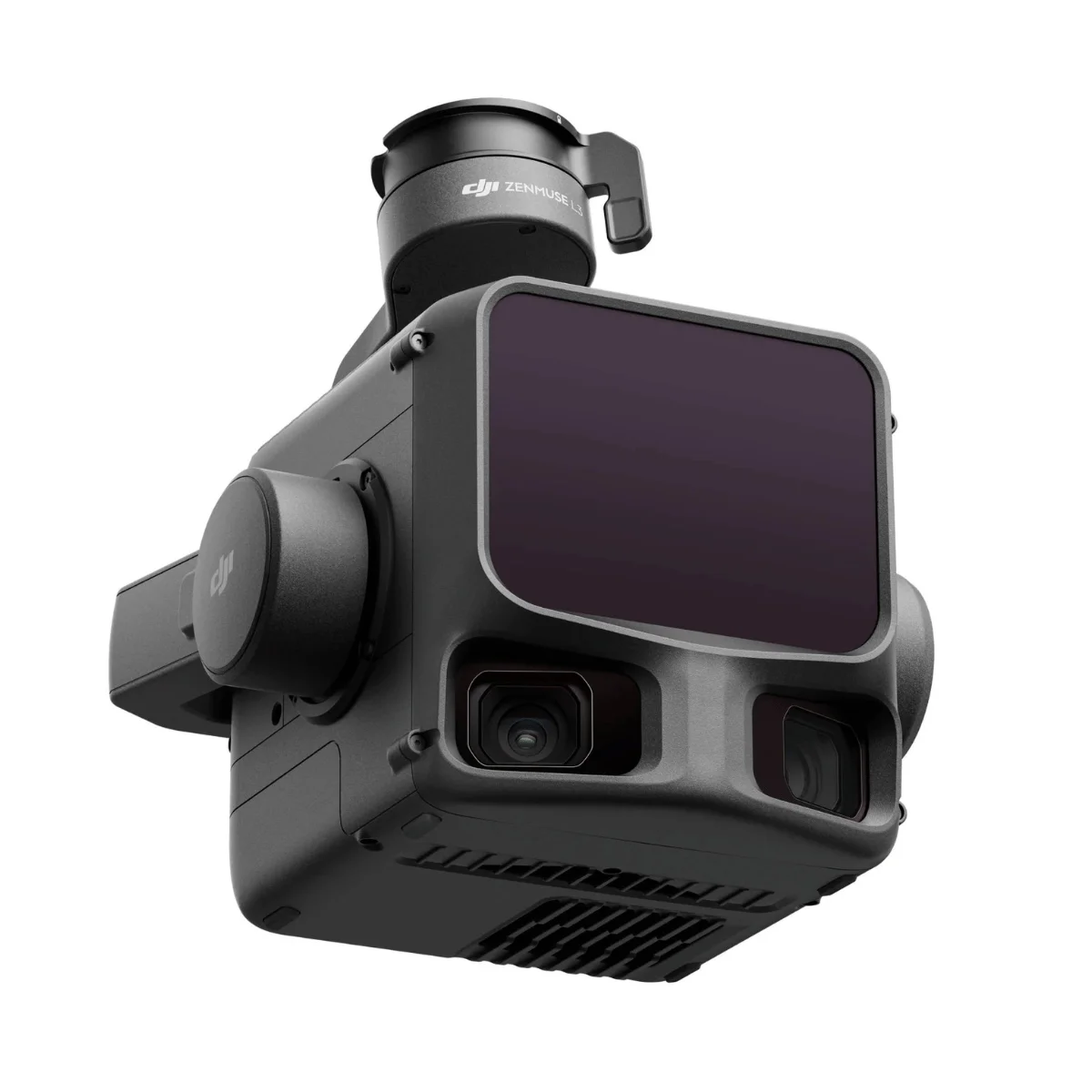

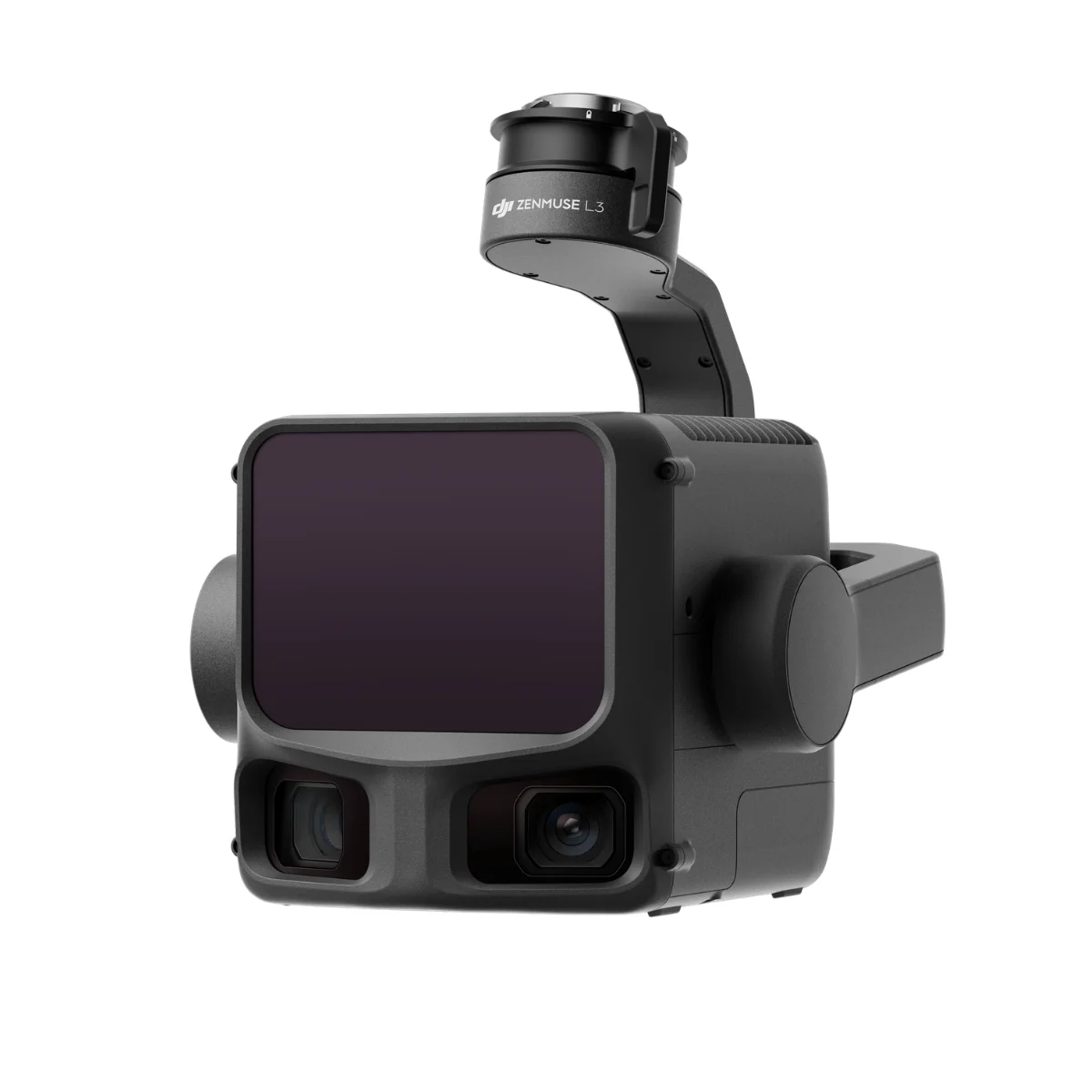

The DJI Zenmuse L3 is a next-generation airborne LiDAR + dual RGB mapping system for centimeter-grade surveying. A long-range 1,535 nm laser (up to 950 m detection at 10% reflectivity), twin 100 MP mapping cameras (combined 107° HFOV), and a high-precision POS unit accelerate high-density,radiometrically reliable point-cloud acquisition—enabling daily coverage up to ~100 km² with streamlined post-processing. Built for the DJI Matrice 400 (with L3 gimbal connector), the payload is IP54 rated and operates from −20 to 50 °C.
SPECIFICATIONS — Zenmuse L3
| Product | DJI Zenmuse L3 (Airborne LiDAR + dual RGB mapping payload) |
| Laser & range | 1,535 nm class laser, up to 950 m detection @ 10% reflectivity, 100 klx ambient (100 kHz) |
| Point-cloud accuracy (RMSE) |
At 120 m AGL: 3 cm vertical, 4 cm horizontal; at 300 m AGL: 5 cm vertical, 7.5 cm horizontal (lab-measured with GCPs; DJI Terra optimization) |
| Point-cloud thickness (1σ) | 1.2 cm @ 120 m nadir, 2.0 cm @ 300 m nadir (linear scan; 80% reflectivity targets) |
| Pulse rate & returns | Up to 2 Mpps emission, support for up to 16 returns |
| RGB mapping cameras | Dual 100 MP with fused 107° horizontal FOV (45° optical-axis offset) |
| RGB GSD (typ.) | ~3 cm @ 300 m AGL (nadir) |
| Coverage potential | Up to ~100 km²/day (workflow-dependent) |
| Power | 64 W typical, 100 W max |
| Dimensions, weight | 192 × 162 × 202 mm, 1.60 kg (payload only); L3 gimbal connector 145 g |
| Ingress protection | IP54 |
| Operating & storage temp. | −20 to 50 °C operating, −40 to 70 °C storage |
| Aircraft compatibility | DJI Matrice 400 (requires Zenmuse L3 single-gimbal connector) |

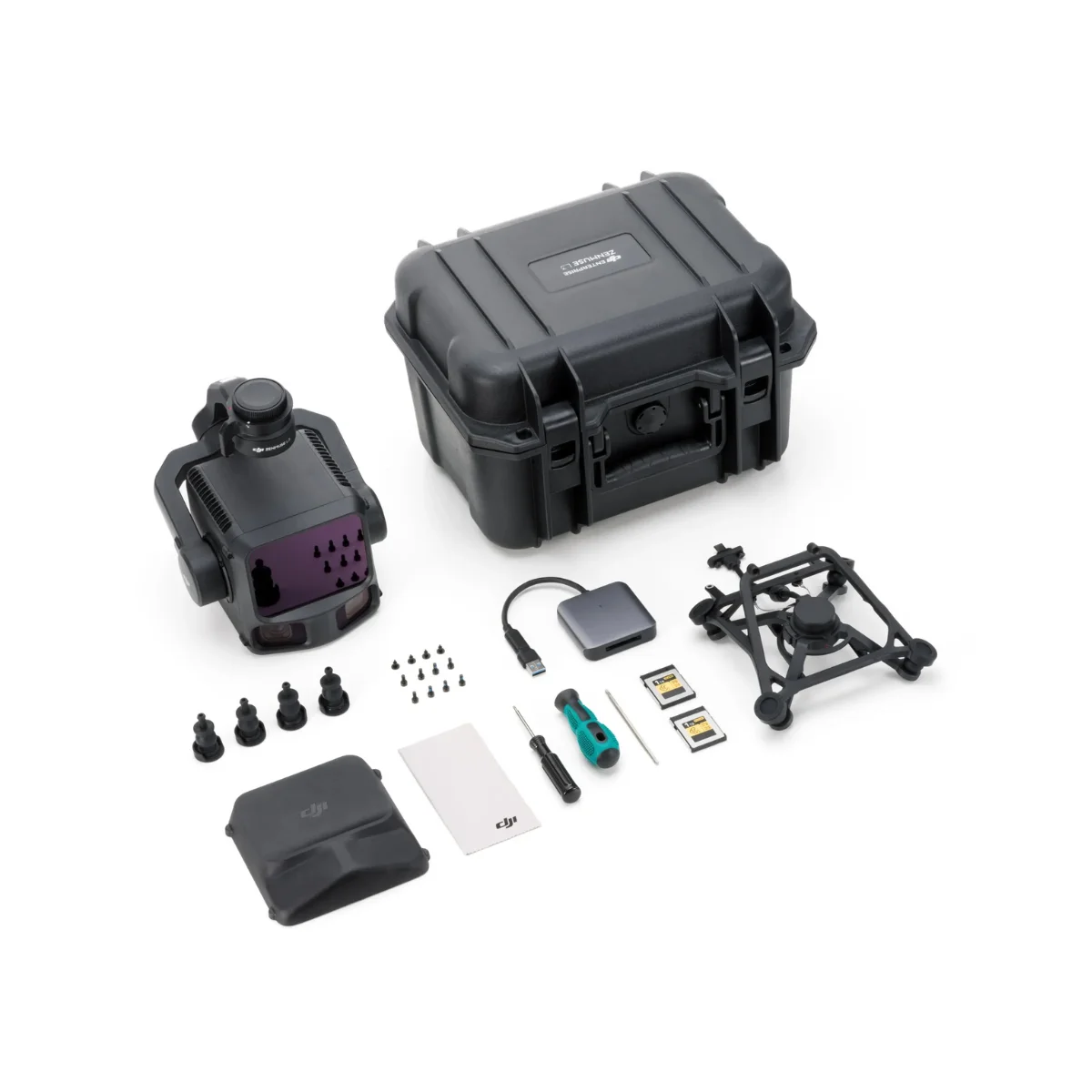

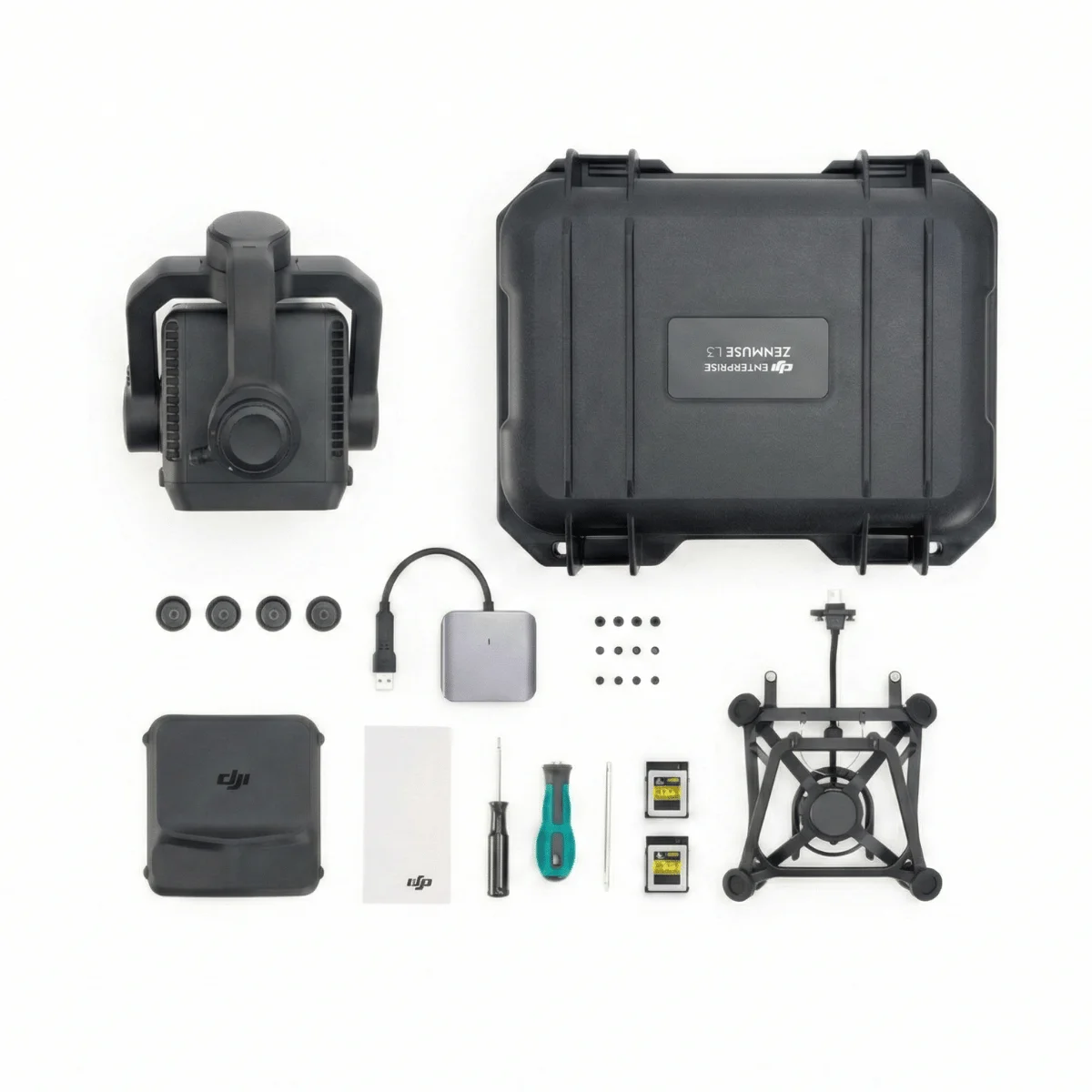

WHAT’S IN THE BOX — Zenmuse L3 (Standard Kit)
| Zenmuse L3 Payload | × 1 |
| Zenmuse L3 Single-Gimbal Connector | × 1 |
| Carrying & Storage Case | × 1 |
| Gimbal Dampers | × 4 |
| CFexpress Type-B Memory Card | × 2 |
| CFexpress Type-B Card Reader | × 1 |
| Foam Adapter for Matrice 400 Case (L3) | × 1 |
| Lens Cleaning Cloth | × 1 |
| Screws & Tools Kit | × 1 |
| DJI Care Enterprise Plus (12-month plan, pre-activated) | × 1 |
Notes
• Range, returns, and accuracy depend on altitude, reflectivity, ambient light, pulse settings, and flight profile.
• Stated RMSE values were measured with calibrated RTK, suitable GCPs, and DJI Terra point-cloud optimization.
• Always verify regional compliance for LiDAR operations and data-privacy requirements.
