Description

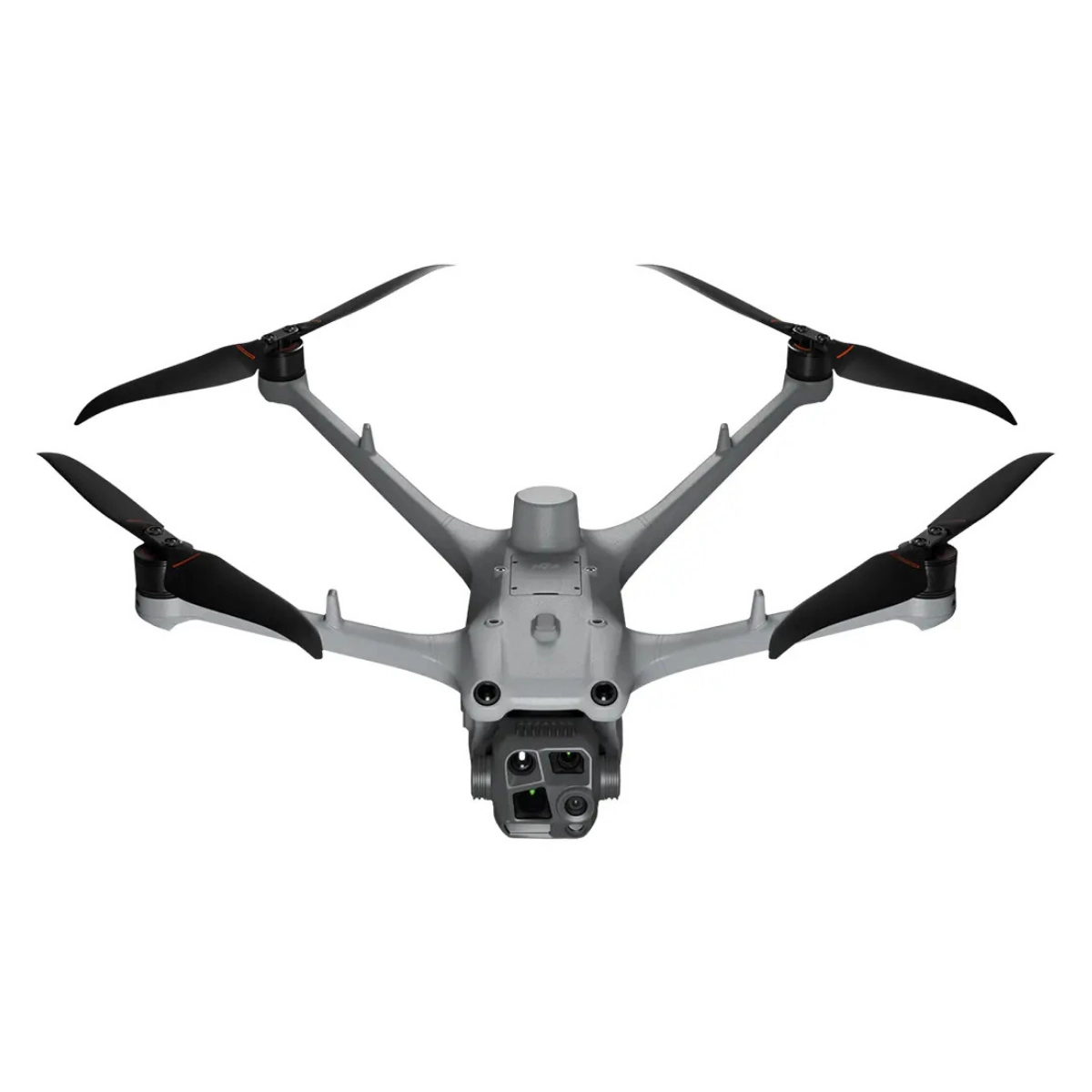

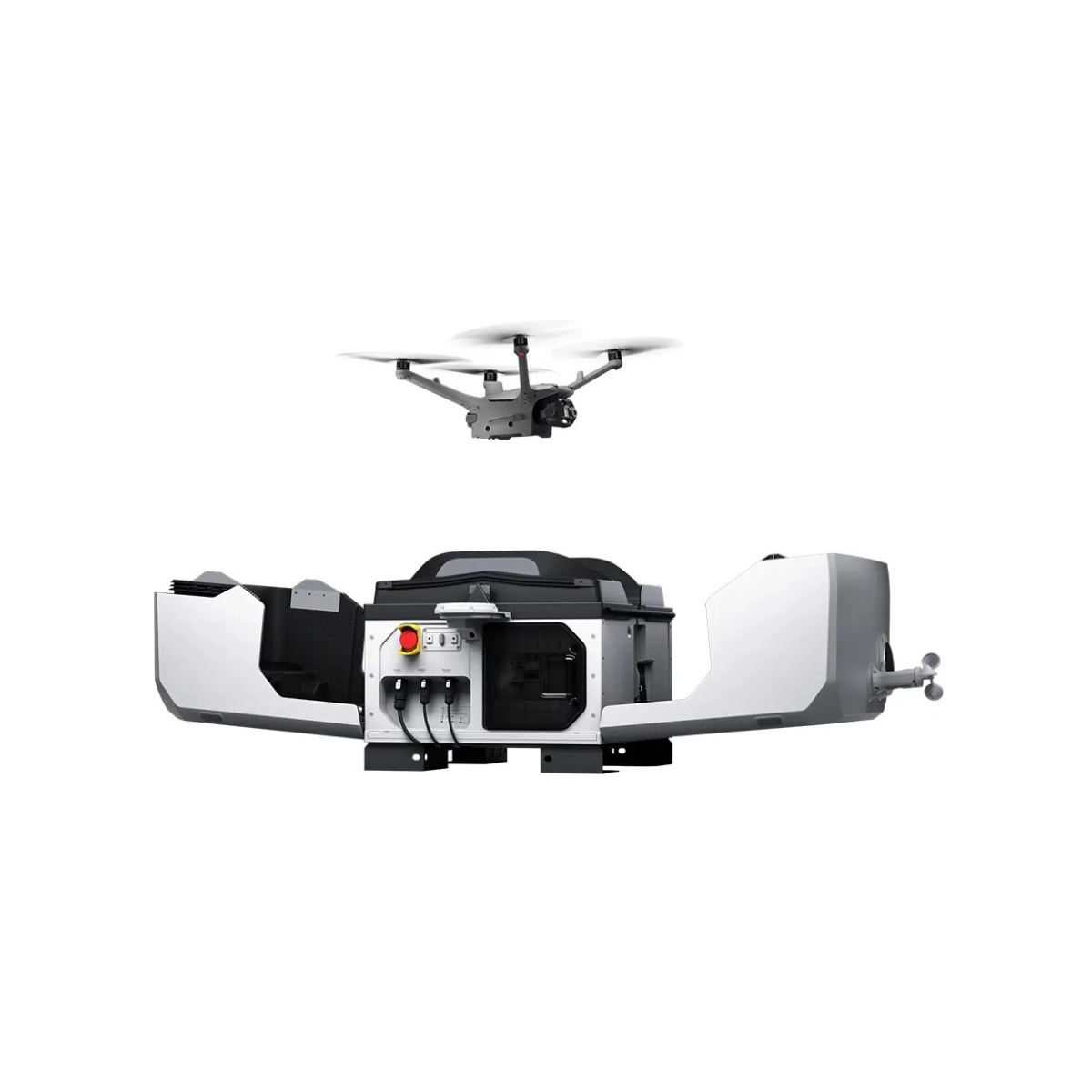

The DJI Dock 3 with Matrice 4TD is an advanced enterprise solution designed for automated remote operations, long-distance inspections, emergency response, and continuous aerial monitoring.
Built for demanding environments, DJI Dock 3 supports both fixed and vehicle-mounted deployments, while the Matrice 4TD combines high-performance visual, thermal, NIR, and laser rangefinding capabilities for reliable day and night operations.
With DJI FlightHub 2 integration, IP56 protection for the dock, IP55 protection for the aircraft, and operation in temperatures from -30°C to 50°C, the system provides a flexible and intelligent platform for mission-critical applications.
SPECIFICATIONS — DJI Dock 3 with Matrice 4TD
| System Configuration |
DJI Dock 3 + DJI Matrice 4TD |
| Dock Ingress Protection |
IP56 |
| Aircraft Ingress Protection |
IP55 |
| Operating Temperature |
-30°C to 50°C (-22°F to 122°F) |
| Effective Operating Radius |
Up to 10 km |
| Extended Transmission |
Up to 25 km with D-RTK 3 Relay Fixed Deployment Version |
| Video Transmission System |
O4+ Enterprise |
| Deployment Options |
Fixed deployment • Vehicle-mounted deployment |
| Vehicle Deployment |
Supports up to two docks on one vehicle |
| Aircraft Charging Time |
Approx. 27 min from 15% to 95% at 25°C (77°F) |
| Automatic Battery Replacement |
Not supported |
| Multi-Dock Tasks |
Supported |

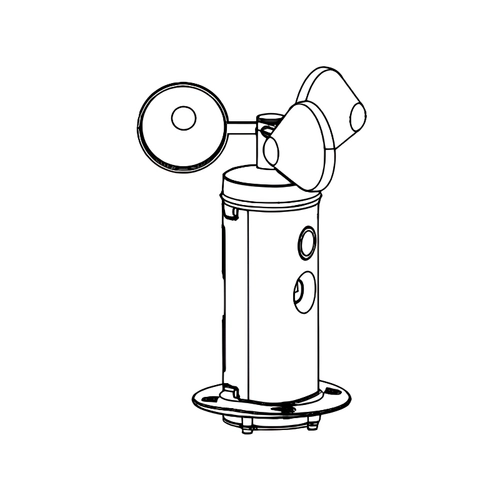

| Environmental Monitoring |
Integrated environmental monitoring system |
| Smart Operations Platform |
DJI FlightHub 2 |
| Smart Functions |
Cloud modeling • FlyTo tasks • Change detection • Vehicle and vessel identification • Infrared temperature anomaly detection |
| Third-Party Payload Support |
Supported |

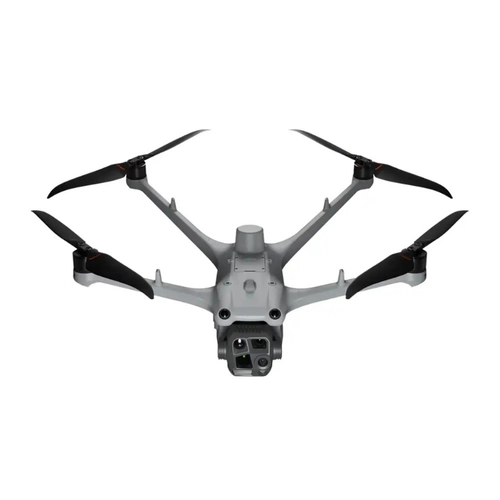

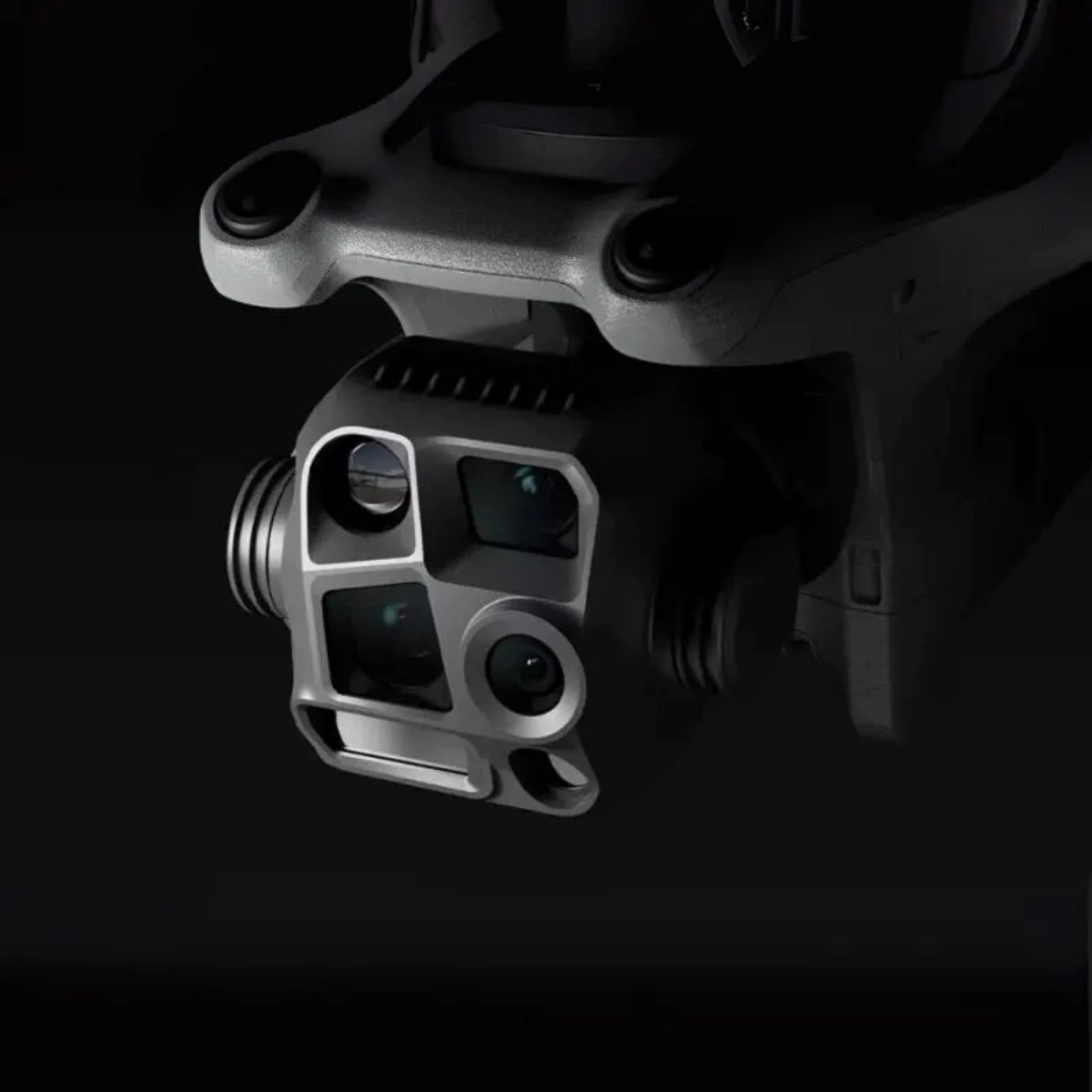

CAMERA & SENSING SYSTEM — DJI Matrice 4TD
| Wide-Angle Camera |
1/1.3-inch CMOS • 48 MP • f/1.7 • 24 mm equivalent |
| Medium Tele Camera |
1/1.3-inch CMOS • 48 MP • f/2.8 • 70 mm equivalent |
| Tele Camera |
1/1.5-inch CMOS • 48 MP • 162 mm equivalent |
| Laser Rangefinder |
Measurement range: 1,800 m (1 Hz) • Oblique incidence range: 600 m (1 Hz) |
| Laser Rangefinder Blind Zone |
1 m |
| Range Accuracy |
± (0.2 + 0.0015 × D) m |
| Infrared Thermal Camera |
640 × 512 • f/1.0 • 53 mm equivalent • Uncooled VOx microbolometer |
| Thermal Imaging Mode |
Supports UHR infrared imaging mode |
| NIR Auxiliary Light |
6° field of view • Up to 100 m illumination distance |
| Night Operations |
Color night vision • IR-Cut capabilities for black-and-white night vision |
| Forward Flight Time |
Up to 54 minutes |
| Hover Time |
Up to 47 minutes |
| Upward Gimbal Tilt |
Up to 80° with the tele camera during hovering in windless conditions |
| Telephoto Stabilization |
Optimized stabilization for telephoto shooting at 10× zoom or higher |
INTELLIGENT & FLEXIBLE OPERATIONS
| Fixed Deployment |
Designed for permanent remote operations with optional D-RTK 3 Relay support for improved positioning and transmission performance. |
| Vehicle-Mounted Deployment |
Supports mobile operations, horizontal calibration, and cloud-based calibration for emergency response and long-distance inspections. |
| Dual-Dock Vehicle Operation |
Two docks can be deployed on one vehicle with coordinated task rotation designed to prevent aircraft conflicts. |
| Rapid Takeoff |
Supports rapid takeoff and can be ready to fly as soon as the dock cover opens. |
| FlightHub 2 Integration |
Supports remote mission management, intelligent route operations, cloud modeling, FlyTo tasks, and automated analysis. |
| Optional Obstacle Sensing Module |
LiDAR and millimeter-wave radar support for precise maneuvering in complex environments. |

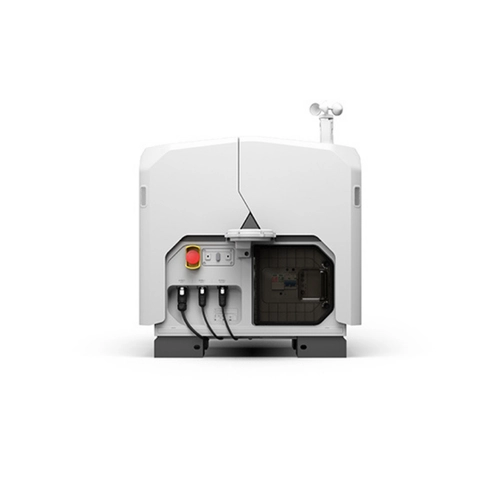

Dock Body
Ground Wire Included
× 1

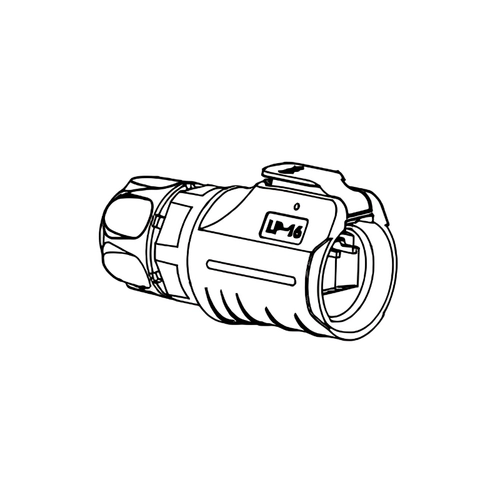

Ethernet Cable Connector
× 1

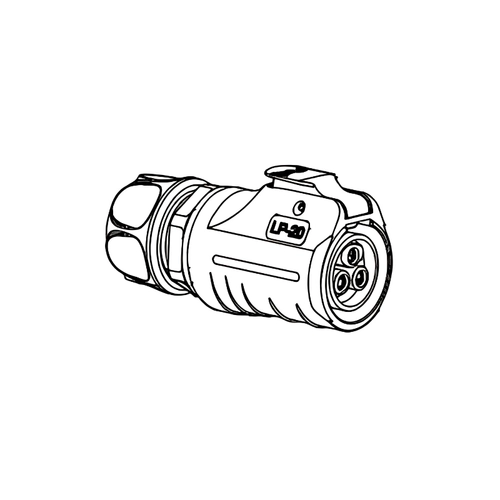

Power Cable Connector
× 1
Your purchase includes (Next Level Corp)
• Official DJI product.
• Certified technical support and training.
• Genuine spare parts availability.
• Official factory warranty.
• After-sales support in Bolivia.
