Description
The DJI O4 Ground Station is an advanced enterprise communication station designed to extend drone transmission coverage and maintain stable links in environments affected by obstacles, electromagnetic interference, terrain, or signal limitations.
Featuring an enhanced DJI O4 Enterprise video transmission system, a 12-antenna OcuSync 4 Pro array, and automatic multi-band capabilities with supported aircraft, it provides reliable communication for large-scale industrial, urban, infrastructure, public safety, mining, energy, and remote operations.
With Gateway Mode and Relay Mode, IP67 weather protection, IK07 impact resistance, integrated backup power, and support for unattended 24/7 operation, the DJI O4 Ground Station is built for demanding permanent deployments.
SPECIFICATIONS — DJI O4 Ground Station
|
Video Transmission System
|
Enhanced DJI O4 Enterprise Video Transmission System
|
|
Antenna System
|
12 OcuSync 4 Pro directional antennas
|
|
External Antennas
|
OcuSync 4 Pro directional antenna × 4
|
|
Internal Antennas
|
OcuSync 4 Pro directional antenna × 8
|
|
Operating Bands
|
2.4 GHz • 5.2 GHz • 5.8 GHz • Sub2G with DJI Matrice 400 where supported
|
|
Wireless Configuration
|
2.4G / 5.2G / 5.8G: 2T4R • Sub2G: 2T2R
|
|
Operating Modes
|
Gateway Mode • Relay Mode
|
|
Maximum Theoretical Transmission Range — CE
|
Up to 25 km with DJI Matrice 400 • Up to 18 km with other supported aircraft
|
|
Maximum Theoretical Transmission Range — IC
|
Up to 40 km with DJI Matrice 400 • Up to 30 km with other supported aircraft
|
|
Maximum Theoretical Transmission Range — SRRC
|
Up to 25 km with DJI Matrice 400 • Up to 18 km with other supported aircraft
|
|
Ingress Protection
|
IP67
|
|
Impact Protection
|
IK07
|
|
Operating Temperature
|
Up to -40°C to 55°C (-40°F to 131°F), depending on PoE power supply type
|
|
Maximum Operating Altitude
|
6,000 m
|
|
Dimensions
|
170 × 170 × 352 mm
|
|
Weight
|
2.68 kg
|
|
Power Interface
|
Ethernet PoE — WAN and LAN PoE input
|
|
Maximum Power Consumption
|
65 W including heating
|
OPERATING MODES — DJI O4 Ground Station
|
Gateway Mode
|
Connects directly to DJI FlightHub 2 through Ethernet or DJI Cellular Dongle 2, allowing aircraft operating from DJI Dock 3 to use the station as an additional communication point for expanded transmission coverage.
|
|
Relay Mode
|
Functions as a communication relay between the aircraft and a remote controller or DJI Dock 3 without requiring an Internet connection.
|
|
Elevated Deployment
|
Can be installed at an elevated location to help overcome buildings, vegetation, terrain variations, and infrastructure that may block direct communication.
|
|
RTK Reference Data
|
Can provide RTK reference data to connected aircraft after station position calibration.
|
|
24/7 Unattended Operation
|
Designed for permanent and unattended deployments with automatic startup after compatible PoE power is restored.
|
GNSS & POSITIONING
|
GPS
|
L1C/A • L2C • L5
|
|
BeiDou
|
B1I • B2I • B3I • B1C • B2a • B2b
|
|
Galileo
|
E1 • E5a • E5b • E6
|
|
GLONASS
|
L1 • L2
|
|
QZSS
|
L1C/A • L2C • L5
|
|
Single-Point Accuracy
|
Horizontal: 1.5 m (RMS) • Vertical: 3.0 m (RMS)
|
|
Satellite-Based Differential Accuracy
|
Horizontal: 30 cm (RMS) • Vertical: 40 cm (RMS) • Approx. 20 min convergence time
|
|
Network RTK Calibration Accuracy
|
Horizontal: 1.0 cm (RMS) + 1 ppm • Vertical: 3.0 cm (RMS) + 1 ppm
|
BACKUP POWER & NETWORKING
|
Backup Battery
|
LiPo • 3250 mAh • 23.4 Wh
|
|
Backup Runtime — Gateway Mode
|
Approx. 45 minutes during unexpected PoE power loss
|
|
Backup Runtime — Relay Mode
|
Approx. 30 minutes during unexpected PoE power loss
|
|
Fully Charged Runtime
|
Approx. 2 hours in Gateway Mode
|
|
Battery Charging
|
Supports 9 V or 12 V PD charging • Approx. 2.5 hours with 65 W PD
|
|
Ethernet Connection
|
Adaptive Ethernet port • Recommended bandwidth ≥100 Mbps • Latency ≤100 ms
|
|
4G Connectivity
|
Supported through DJI Cellular Dongle 2, sold separately
|
|
Ethernet Cable Requirement
|
Outdoor waterproof Cat 6 or higher twisted-pair cable • Maximum length 100 m
|
SOFTWARE & COMPATIBILITY
|
Gateway Mode Compatibility
|
DJI Dock 3
|
|
Relay Mode Compatibility
|
DJI Dock 3 • DJI Matrice 400 • DJI Matrice 4E • DJI Matrice 4T • DJI Matrice 4D with DJI RC Plus 2 Enterprise • DJI Matrice 4TD with DJI RC Plus 2 Enterprise
|
|
Cloud Platforms
|
DJI FlightHub 2 • FlightHub 2 On-Premises • FlightHub Sync • DJI Cloud API
|
|
Deployment App
|
DJI Enterprise App for Android
|
|
External Device Support
|
ONVIF • GB/T 28181 • ESDK 2.0
|
|
External Video Streams
|
Supports up to 4 simultaneous H.264 1080p video streams
|

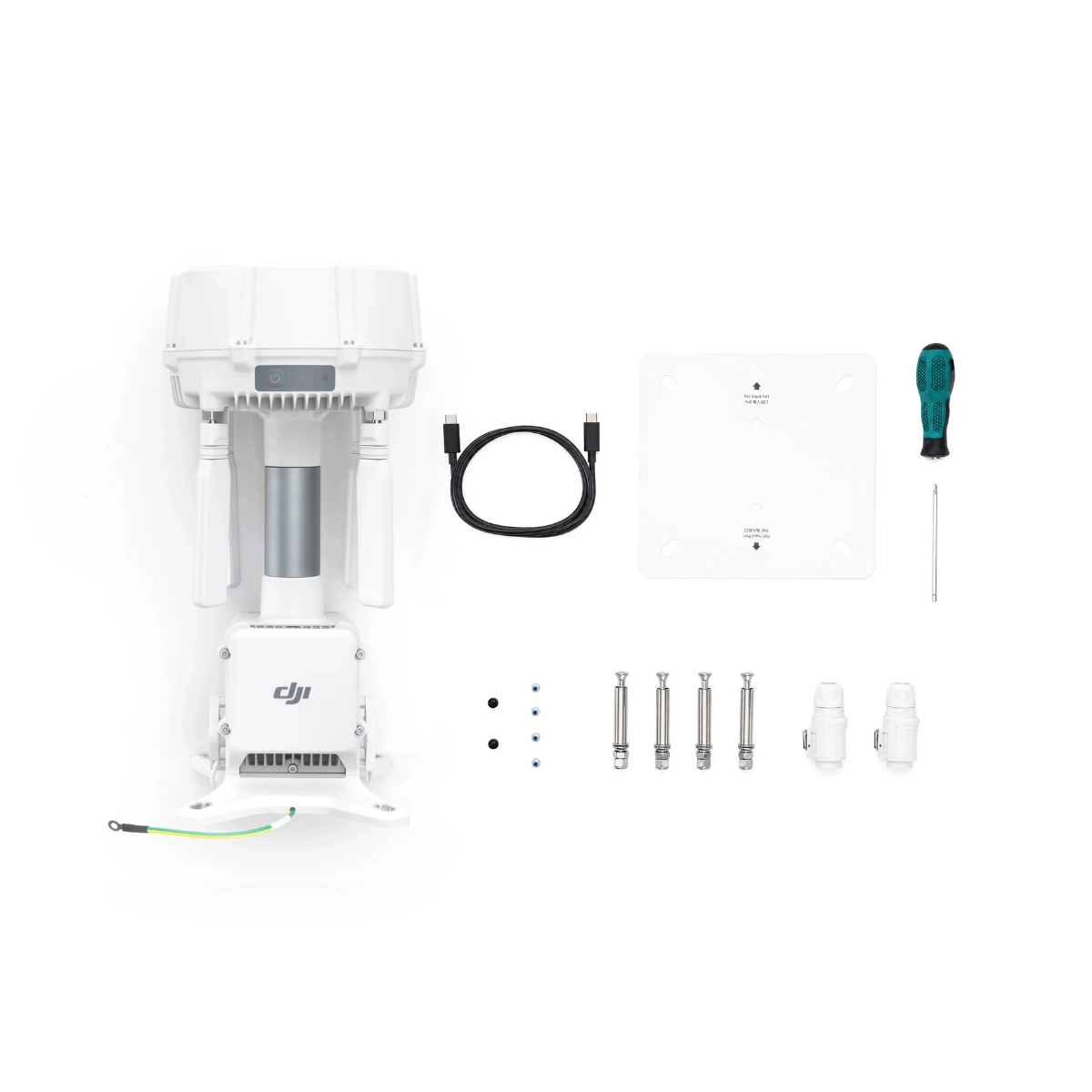

WHAT’S INCLUDED — DJI O4 Ground Station
|
DJI O4 Ground Station
|
× 1 |
|
Hole Template
|
× 1 |
|
Screwdriver
|
× 1 |
|
Screws
|
× 6 |
|
Connectors
|
× 2 |
|
USB-C to USB-C Cable
|
× 1 |
|
Base Mounting Screws
|
× 4 |
|
User Guide
|
× 1 |
|
DJI Care Enterprise
|
Not included
|
Your purchase includes (Next Level Corp)
• Official DJI product.
• Certified technical support and training.
• Genuine spare parts availability.
• Official factory warranty.
• After-sales support in Bolivia.
