Description

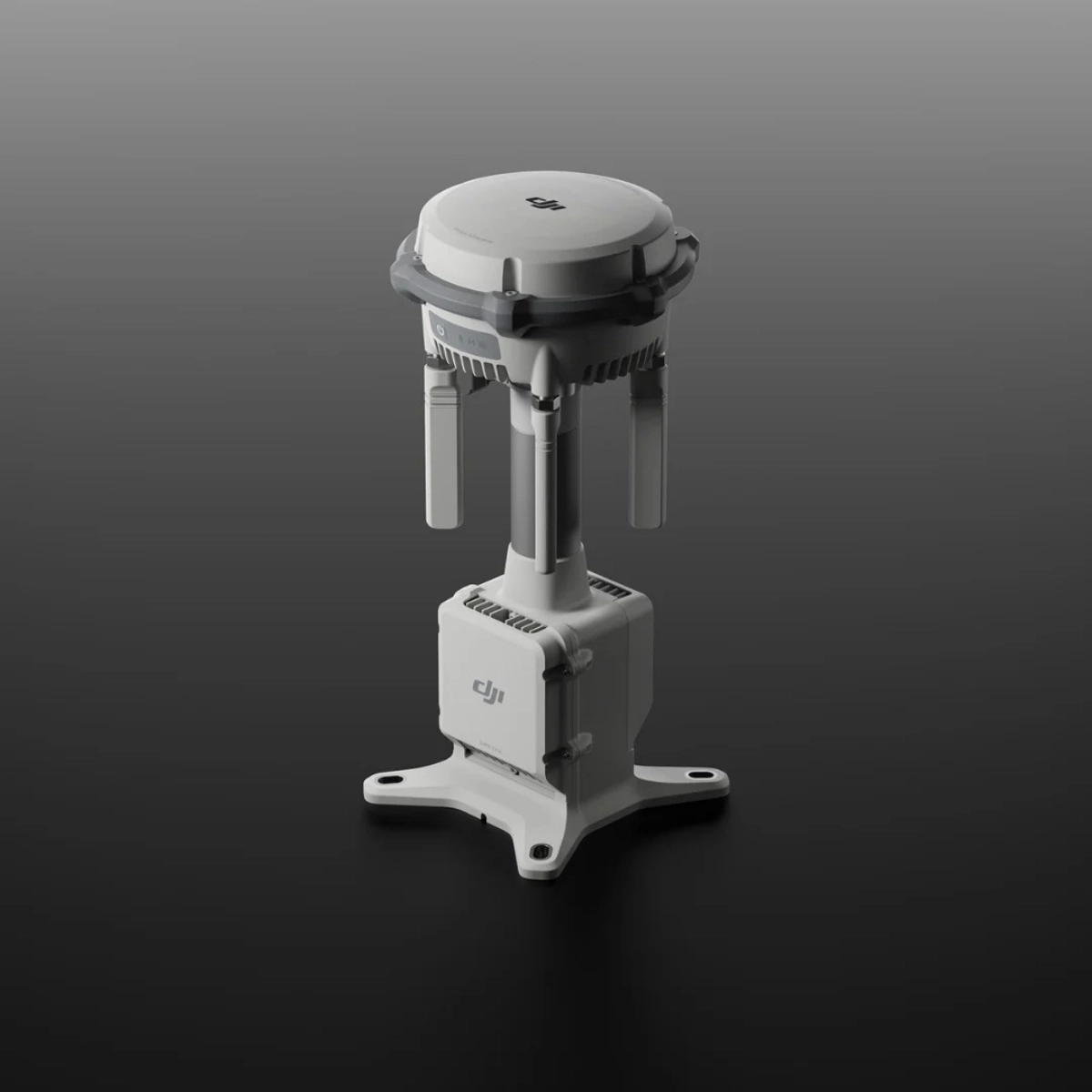

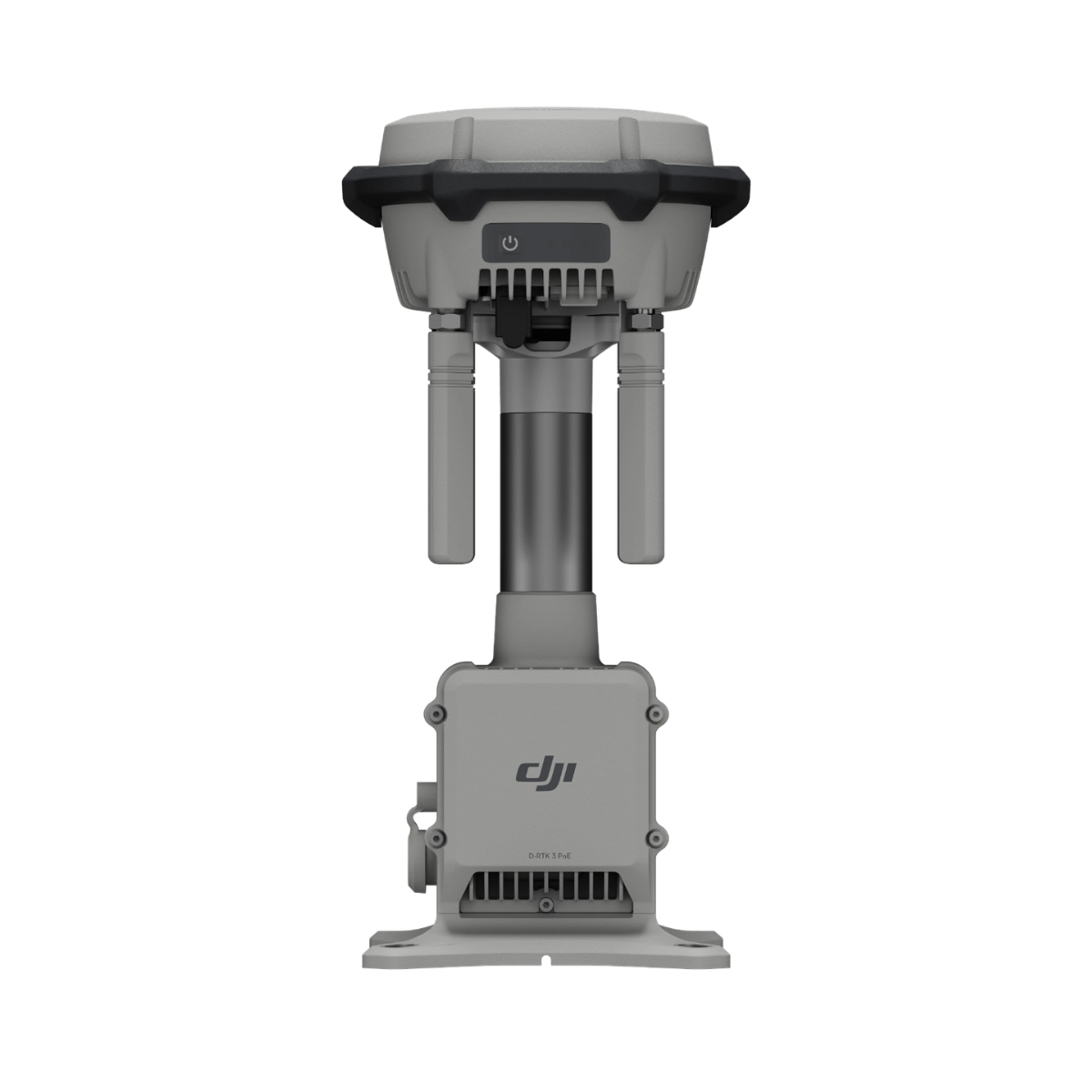

The D-RTK 3 Relay Fixed Deployment Version is a high-precision positioning and signal relay solution designed to provide centimeter-level positioning accuracy for compatible DJI Enterprise drones.
When installed in an elevated location, its signal relay capability helps overcome communication obstructions, significantly improving video transmission distance and deployment flexibility for operations involving DJI Dock 3.
With support for major global satellite navigation systems and multiple data transmission links, the D-RTK 3 provides reliable positioning and communication support for demanding aerial surveying and remote drone operations.
SPECIFICATIONS — D-RTK 3 Relay Fixed Deployment Version
|
Primary Function
|
Centimeter-Level Positioning & Signal Relay
|
|
GPS
|
L1C/A • L2C • L5
|
|
BeiDou
|
B1I • B2I • B3I • B1C • B2a • B2b
|
|
Galileo
|
E1 • E5a • E5b • E6
|
|
GLONASS
|
L1 • L2
|
|
QZSS
|
L1C/A • L2C • L5
|
|
L-Band
|
Supported
|
|
Static Measurement — Horizontal
|
0.8 cm + 1 ppm (RMS)
|
|
Static Measurement — Vertical
|
1.5 cm + 1 ppm (RMS)
|
|
Tilt Measurement Range
|
0° to 60°
|
|
Tilt Measurement — Horizontal Accuracy
|
8 mm + 0.7 mm/° tilt • Accuracy < 2 cm within 30°
|
|
Ingress Protection
|
IP67 (station only)
|
|
Dimensions
|
163 × 89 mm (without directional OcuSync antennas)
|
|
Weight
|
1.26 kg
|
RELAY TRANSMISSION PERFORMANCE
|
FCC — Aircraft to Relay Station
|
Up to 15 km
|
|
FCC — Relay Station to Remote Controller
|
Up to 1 km
|
|
SRRC — Aircraft to Relay Station
|
Up to 12 km
|
|
SRRC — Relay Station to Remote Controller
|
Up to 1 km
|
|
HAY — Aircraft to Relay Station
|
Up to 8 km
|
|
HAY — Relay Station to Remote Controller
|
Up to 300 m
|
|
Operating Conditions
|
Maximum distances apply in Relay Station Mode under unobstructed and interference-free conditions
|
OPERATIONAL CAPABILITIES
|
Centimeter-Level Positioning
|
High-performance GNSS reception supports precise positioning for compatible DJI Enterprise drone operations.
|
|
Signal Relay
|
Helps address communication obstructions when deployed in elevated locations, improving video transmission distance.
|
|
DJI Dock 3 Deployment Support
|
Designed to improve transmission conditions and provide greater flexibility when selecting DJI Dock 3 deployment locations.
|
|
Multi-Drone Operations
|
Supports multiple data transmission links for managing multiple drone operations.
|
|
Aerial Surveying
|
Suitable for high-precision aerial surveying and positioning applications.
|
COMPATIBILITY
|
DJI Matrice 4D
|
Compatible
|
|
DJI Matrice 4TD
|
Compatible
|
WHAT’S INCLUDED — D-RTK 3 Relay Fixed Deployment Version
|
D-RTK 3 Multifunctional Station
|
× 1
|
|
Replacement OcuSync Directional Antennas
|
× 4
|
|
USB-A to USB-C Cable
|
× 1
|
