Description

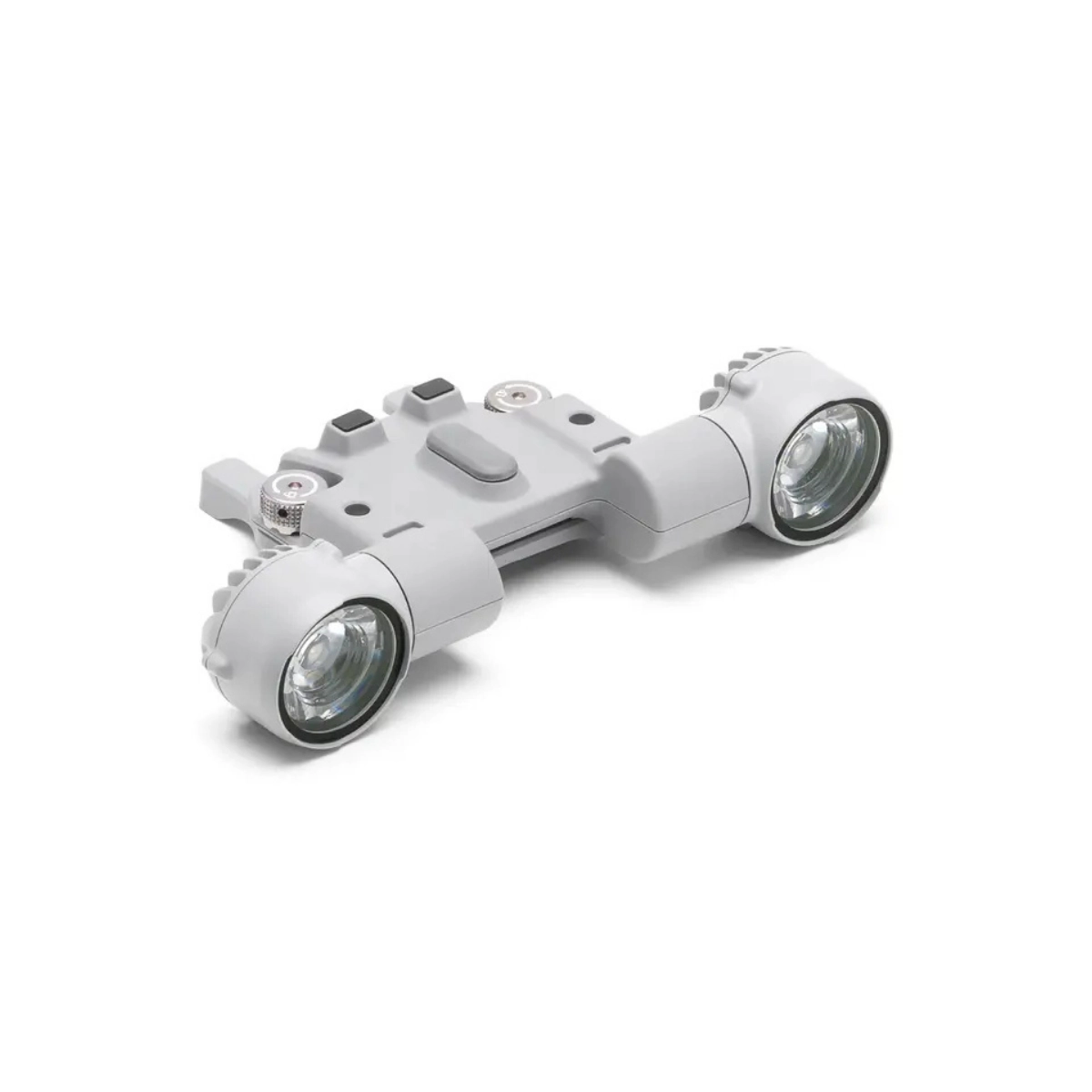

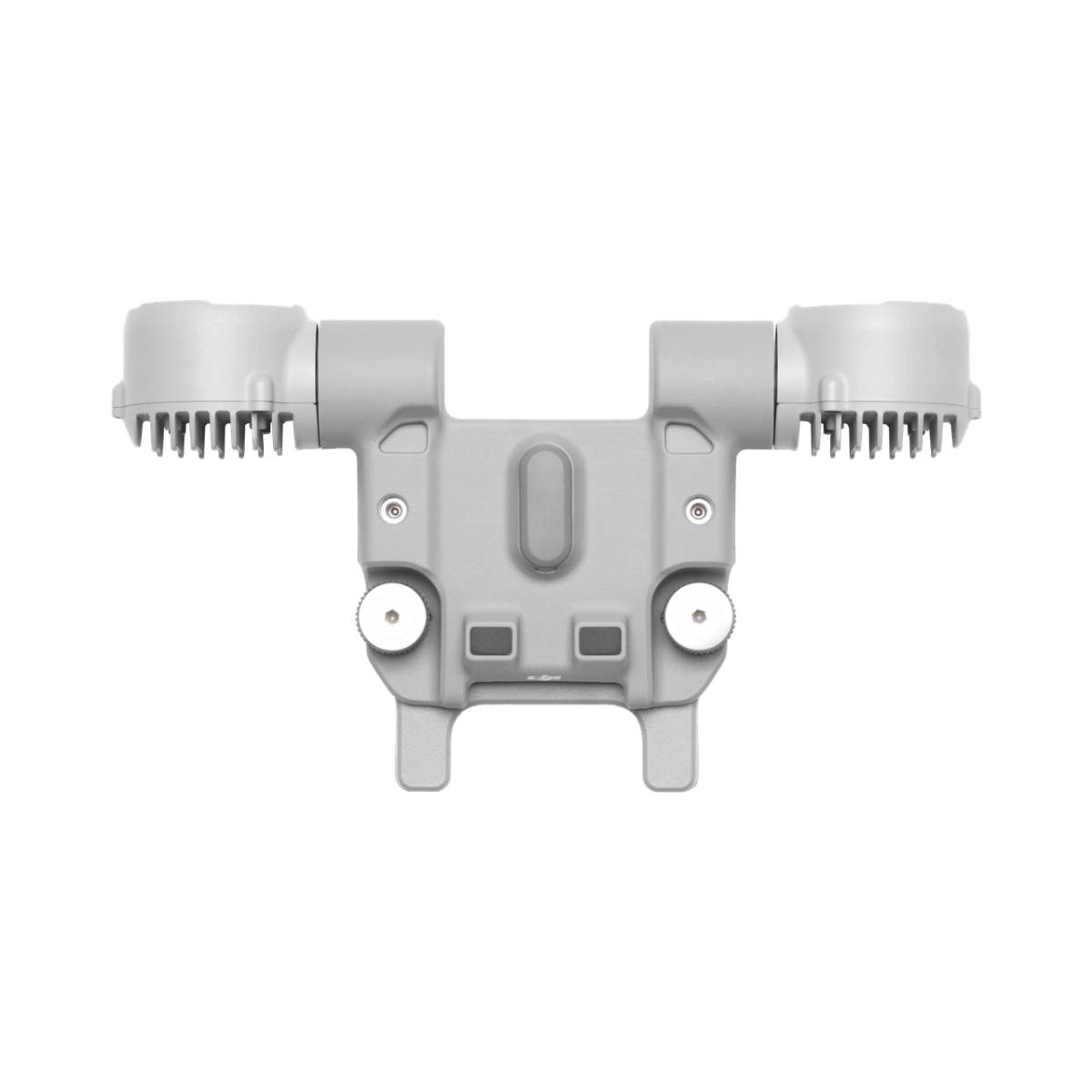

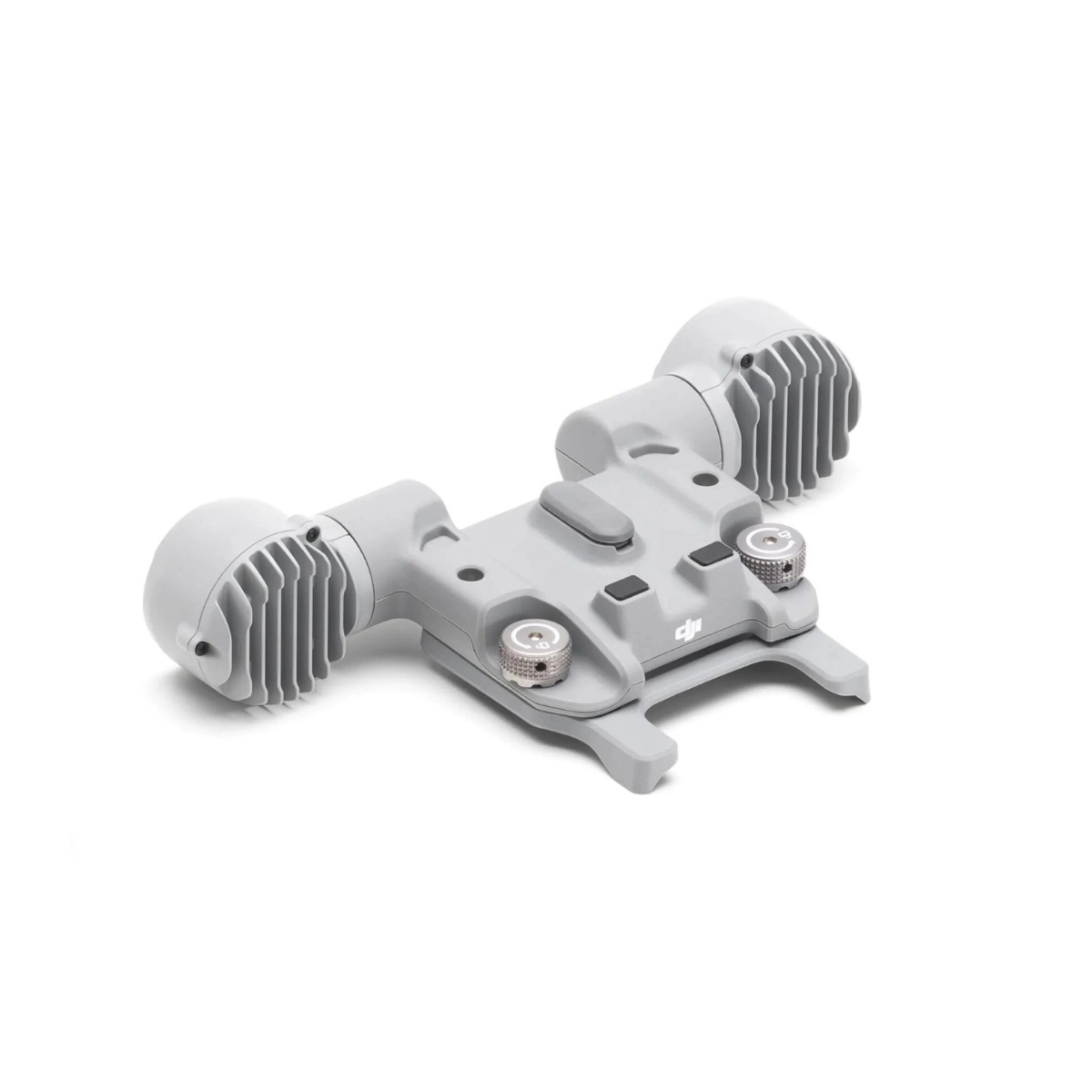

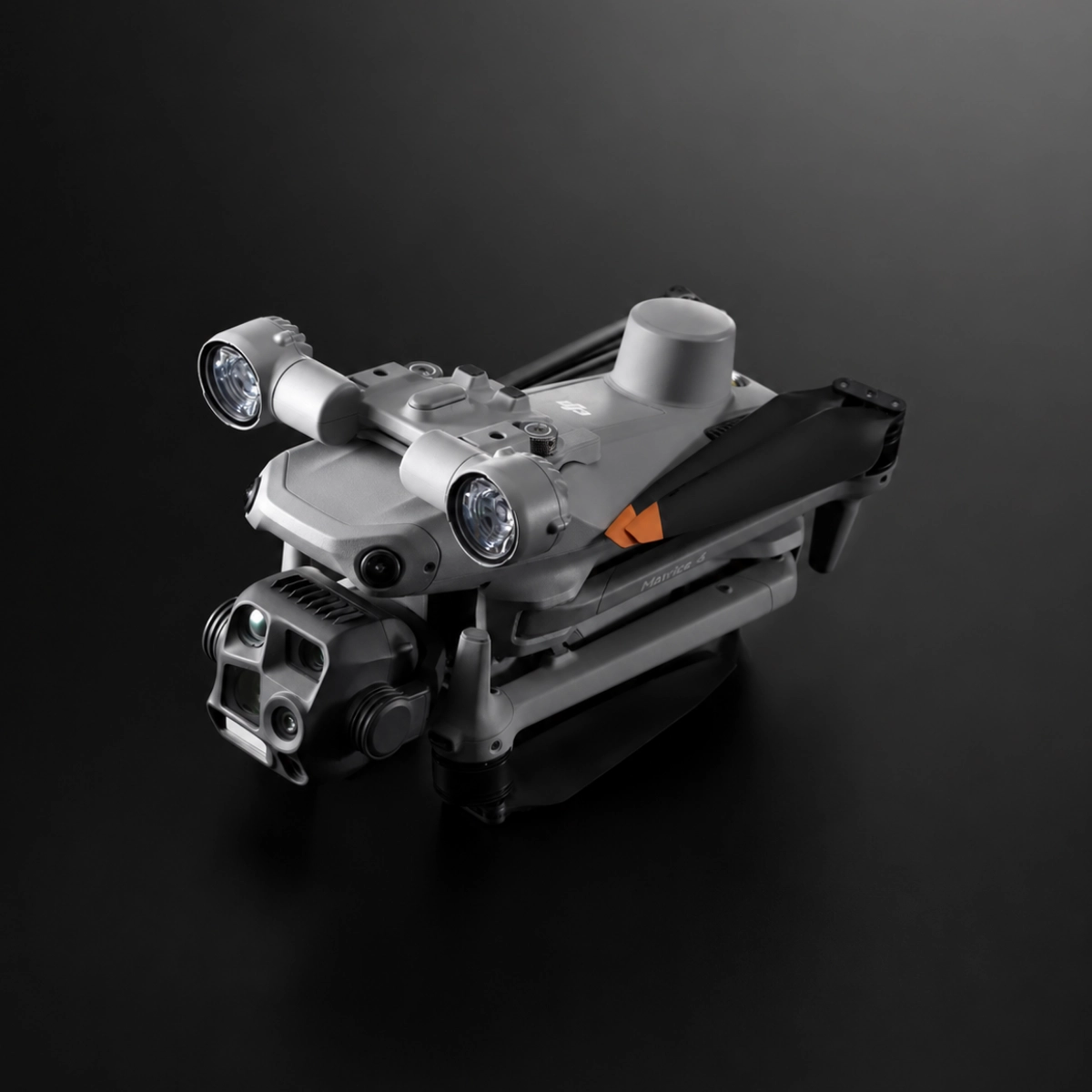

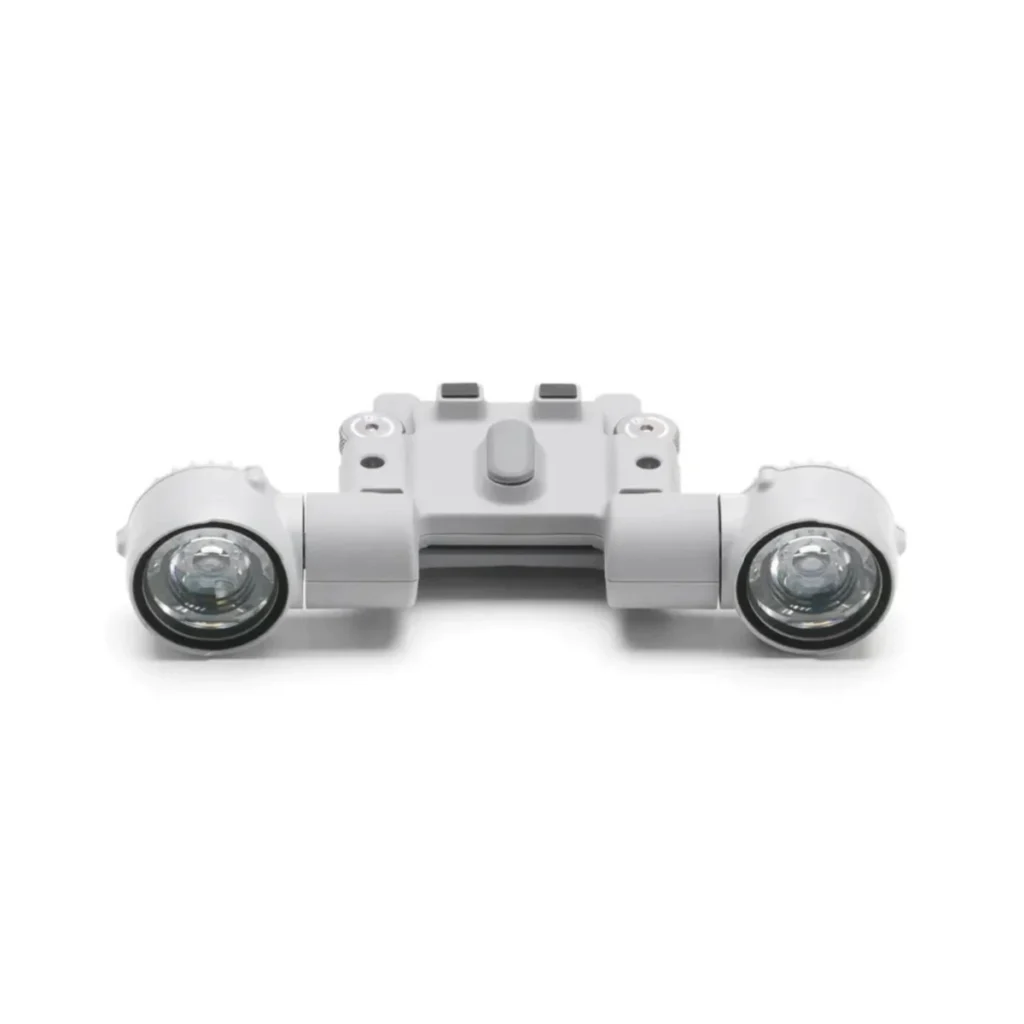

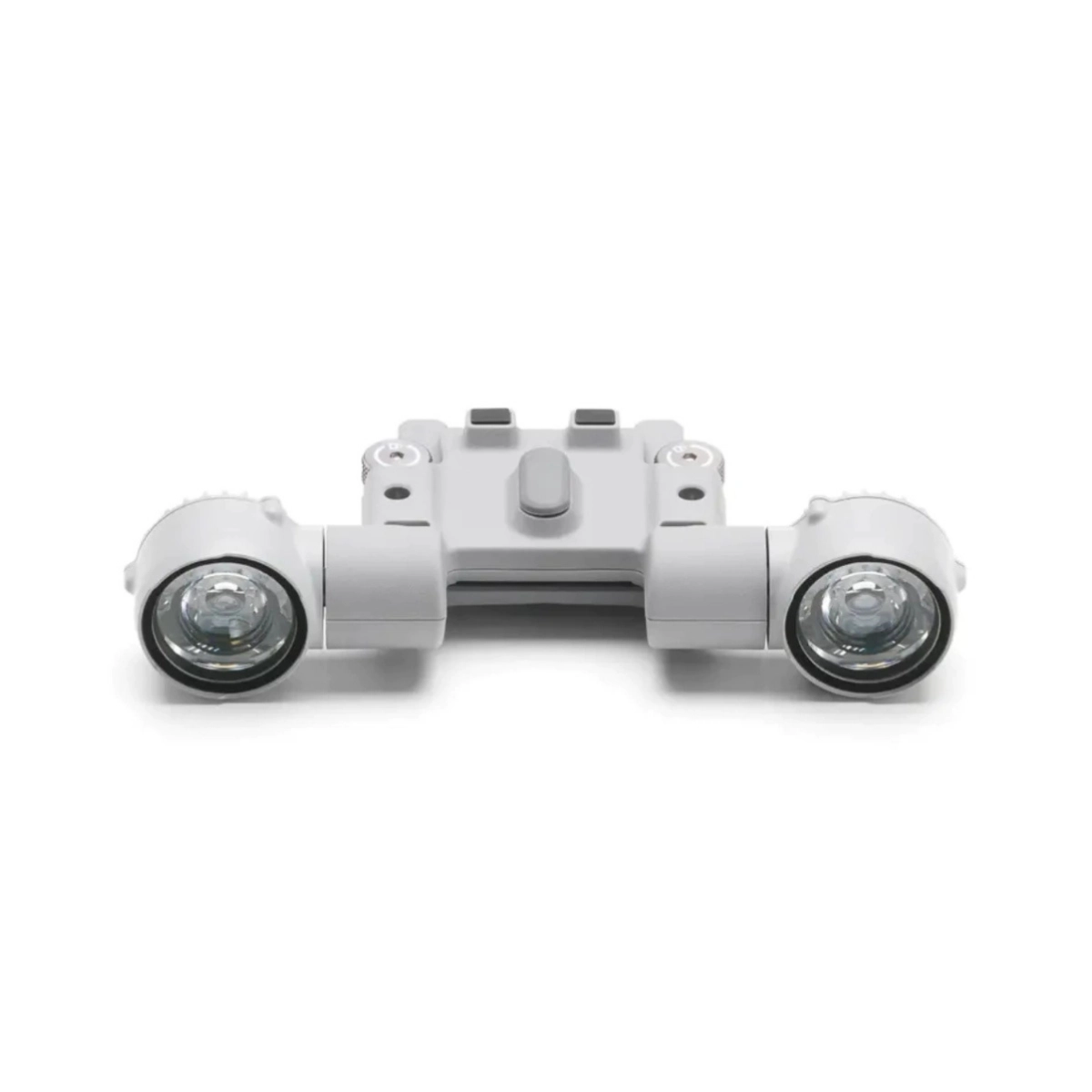

The DJI AL1 Spotlight is a compact enterprise aerial lighting solution designed for the DJI Matrice 4 Series.
Featuring Always-On and Strobe modes, intelligent gimbal synchronization, and a Wide FOV illumination mode, the AL1 can clearly illuminate targets at distances of up to 100 meters while keeping the illuminated area aligned with the camera’s field of view.
Designed for demanding nighttime and low-light operations, the spotlight can be used independently or together with a compatible speaker to support a wider range of professional missions.
SPECIFICATIONS — DJI AL1 Spotlight
|
Product Type
|
Enterprise Drone Spotlight
|
|
Lighting Modes
|
Always-On • Strobe
|
|
Wide FOV Illumination
|
Supported
|
|
Illuminance at 100 m
|
4.3 ± 0.2 lux
|
|
Illuminance at 50 m
|
17 ± 0.2 lux
|
|
Effective Illumination Angle
|
23° at 10% relative illuminance
|
|
Effective Illumination Area — Normal Mode
|
Approx. 1,300 m² at 100 m at 10% relative illuminance
|
|
Effective Illumination Area — Wide FOV Mode
|
Approx. 2,200 m² at 100 m at 10% relative illuminance
|
|
Maximum Power
|
32 W
|
|
Dimensions — With Bracket
|
95 × 164 × 30 mm
|
|
Dimensions — Without Bracket
|
79 × 164 × 28 mm
|
|
Gimbal Mechanical Tilt Range
|
-135° to 45°
|
|
Gimbal Controllable Tilt Range
|
-90° to 35°
|
|
Maximum Gimbal Control Speed
|
120°/s
|
|
Gimbal Alignment Accuracy
|
±0.1°
|
|
Operating Temperature
|
-20°C to 50°C (-4°F to 122°F)
|
|
Mounting Method
|
Hand-tightened quick-release screws
|
INTELLIGENT ILLUMINATION
|
Gimbal Synchronization
|
The spotlight intelligently follows the camera gimbal to help keep the illuminated area aligned with the camera’s field of view.
|
|
Always-On Mode
|
Provides continuous illumination for nighttime inspection and observation operations.
|
|
Strobe Mode
|
Provides flashing illumination for operational scenarios requiring greater visual attention.
|
|
Wide FOV Mode
|
Expands the illuminated area when operating with the camera in wide-angle viewing conditions.
|
|
Spotlight & Speaker Operation
|
The spotlight and compatible speaker can be operated independently or together to support different enterprise mission requirements.
|
COMPATIBILITY
|
DJI Matrice 4 Series
|
Compatible
|
IMPORTANT USE NOTES
|
Installation
|
Tighten all screws securely. For long-term installation on the aircraft, use the included Allen key to retighten the screws after installation.
|
|
Activation & Firmware
|
Activate the spotlight through the application after installation and update to the latest firmware when an update is available.
|
|
Aircraft Performance
|
Installing the spotlight may affect the propulsion and vision system performance of the DJI Matrice 4 Series aircraft. Operate with appropriate caution.
|
|
Eye Safety
|
Do not point the spotlight directly at a person’s eyes.
|
|
Operating Temperature
|
The spotlight may become hot after extended operation. Use caution when handling it.
|
WHAT’S INCLUDED — DJI AL1 Spotlight
|
DJI AL1 Spotlight
|
× 1
|
|
Spare Screws
|
× 2
|
|
Allen Key
|
× 1
|
