Description

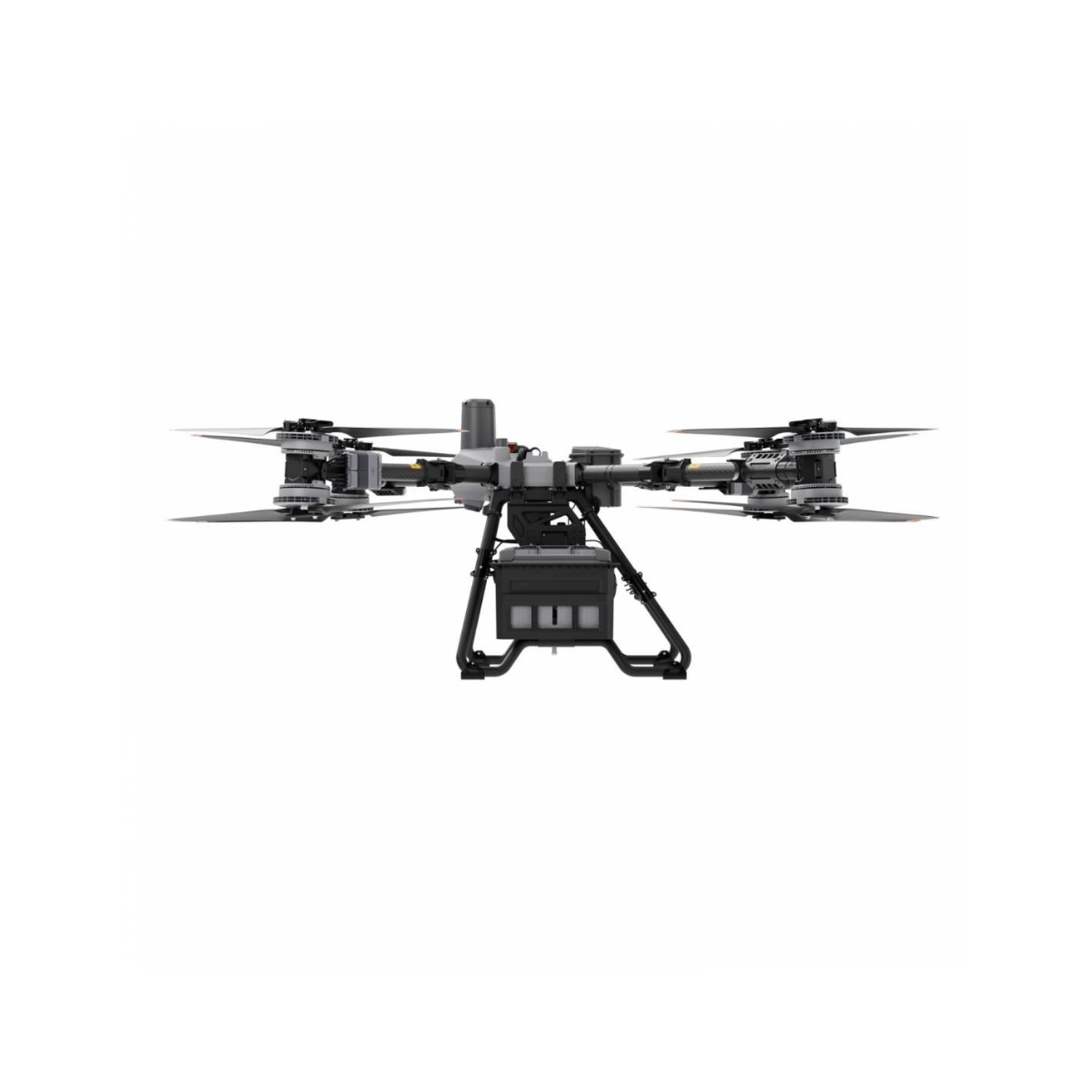

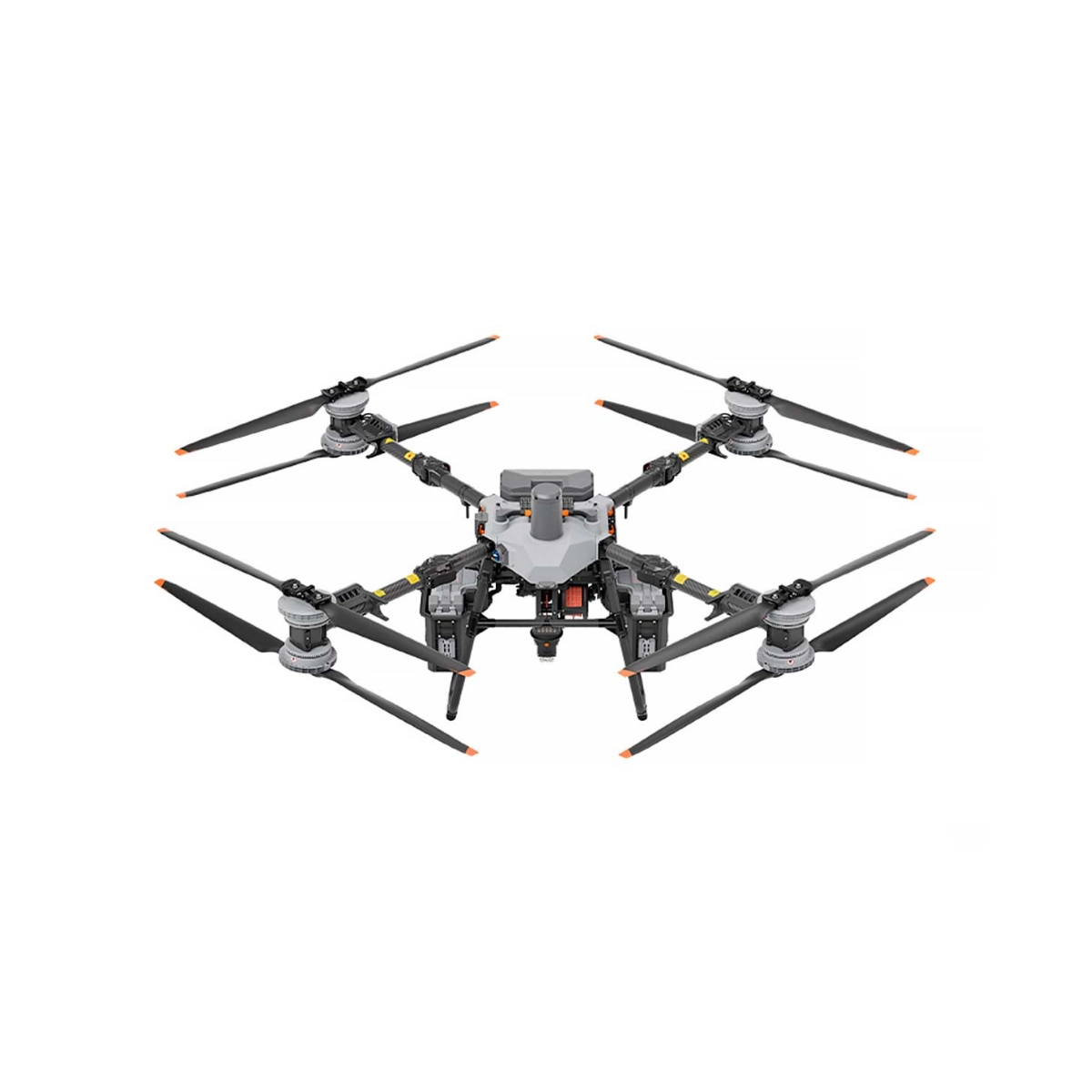

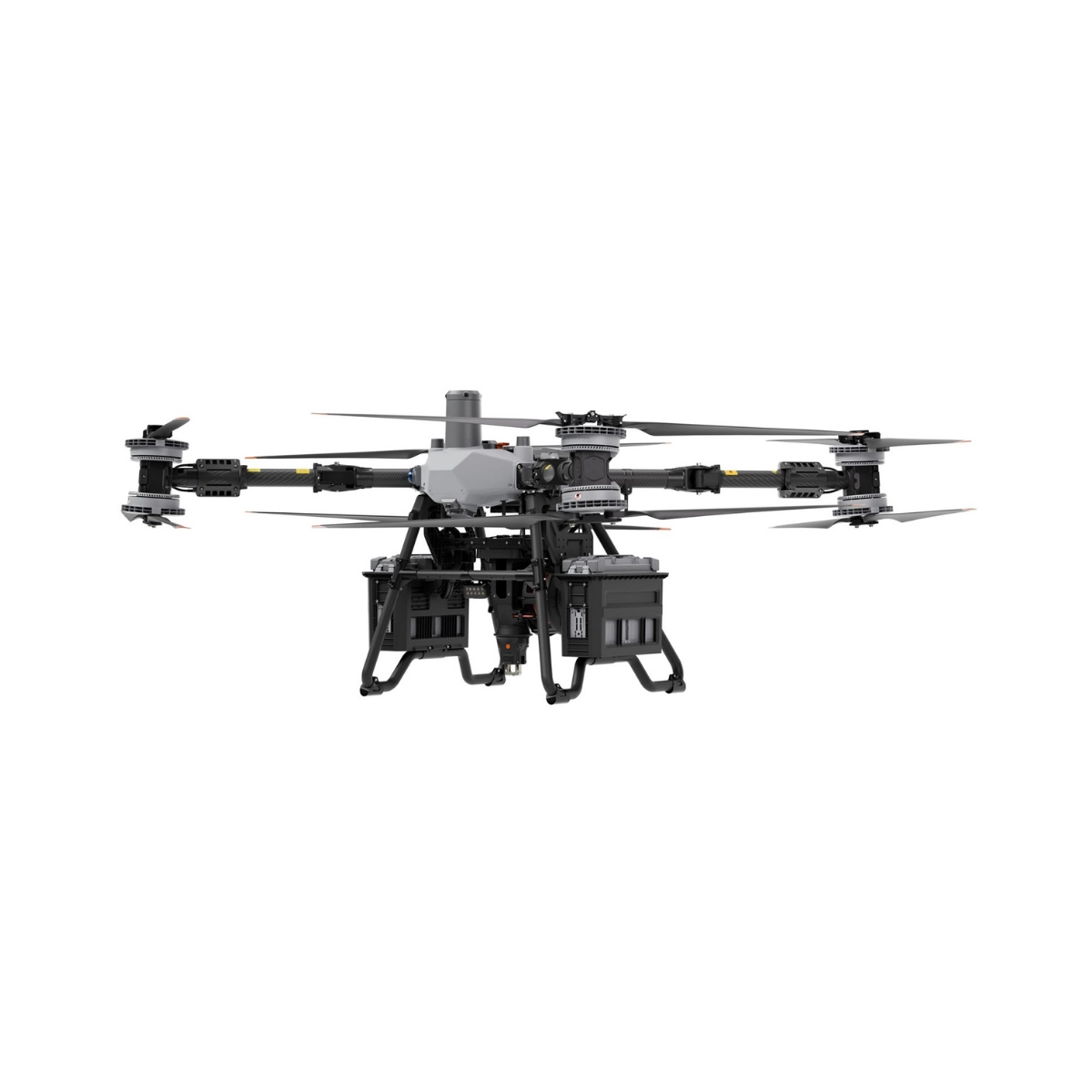

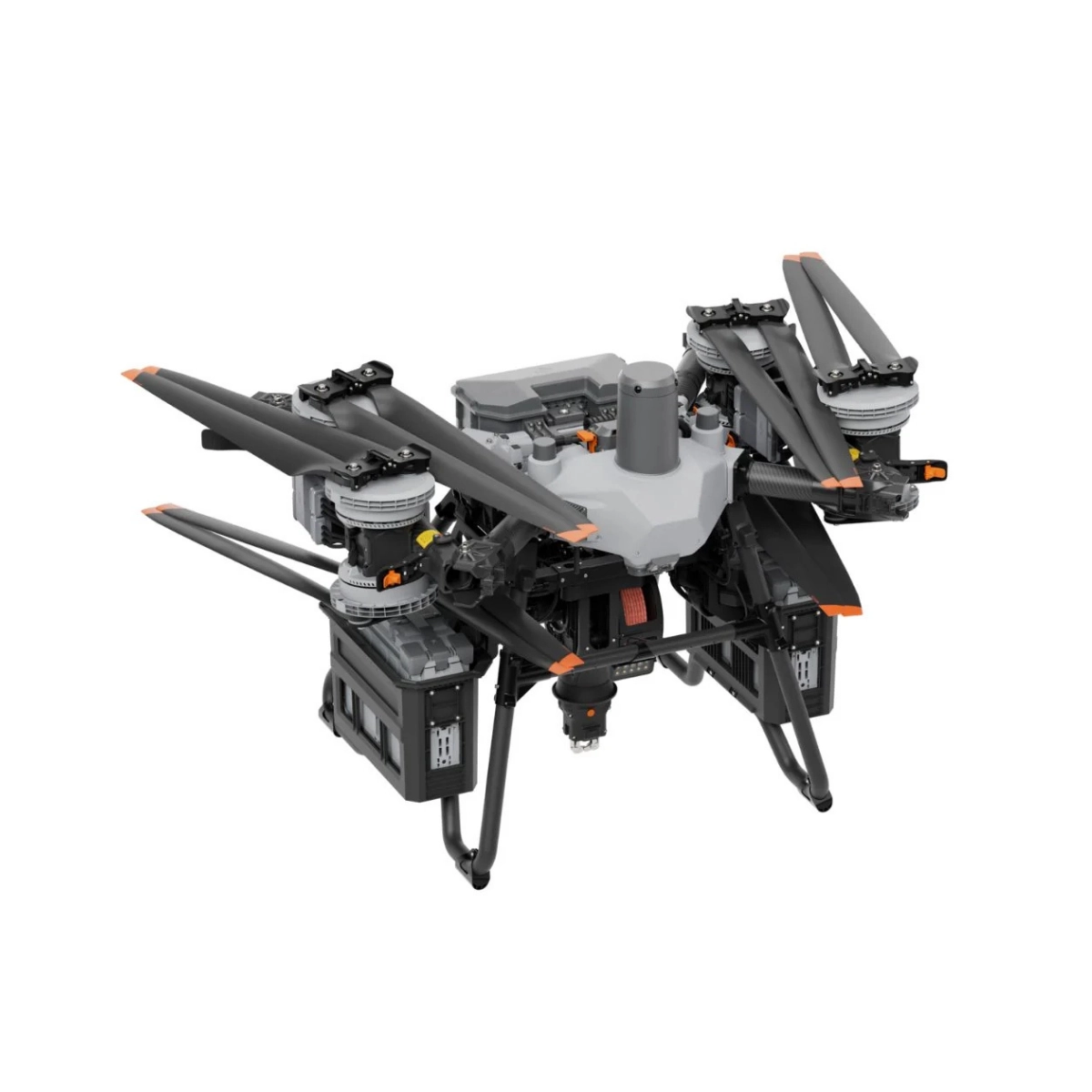

The DJI FlyCart 100 Cargo Drone 2-Battery Combo Kit is a heavy-duty industrial aerial delivery solution designed for demanding logistics and cargo transportation operations.
Built for challenging environments, it supports a maximum payload of up to 85 kg with dual batteries or up to 100 kg with a single battery, while offering both Cargo Mode and Winch Mode.
This complete configuration includes two DB2160 Intelligent Flight Batteries, the DJI C12000 Smart Battery Station, DJI RC Plus TKPL 2 remote controller, a 70 L cargo container, parachute system, and winch system, providing an integrated platform for applications such as mining, agriculture, power line operations, and industrial logistics.
SPECIFICATIONS — DJI FlyCart 100
|
Aircraft Type
|
Industrial Heavy-Lift Cargo Drone
|
|
Maximum Payload — Dual Battery
|
Up to 85 kg
|
|
Maximum Payload — Single Battery
|
Up to 100 kg
|
|
Maximum Range — Dual Battery
|
Up to 12 km under specified conditions
|
|
Maximum Range — Single Battery
|
Up to 6 km
|
|
Unloaded Flight Range
|
Up to approximately 28 km
|
|
Flight Time — Dual Battery
|
Up to 35 minutes under the conditions stated in the provided information
|
|
Flight Time — Single Battery
|
Up to 16 minutes under the conditions stated in the provided information
|
|
Maximum Flight Speed
|
20 m/s with carbon-fiber propellers
|
|
Cruising Speed
|
15 m/s
|
|
Maximum Flight Altitude
|
6,000 m
|
|
Maximum Wind Resistance
|
Approximately 45 km/h
|
|
Ingress Protection
|
IP55
|
|
Operating Temperature
|
-20°C to 45°C (-4°F to 113°F)
|
|
Cargo Operating Modes
|
Cargo Mode • Winch Mode
|
AIRCRAFT DIMENSIONS
|
Arms & Propellers Unfolded
|
3220 × 3224 × 975 mm
|
|
Arms Folded & Propellers Unfolded
|
1820 × 1840 × 975 mm
|
|
Storage / Transport Configuration
|
1105 × 1265 × 975 mm
|
INTELLIGENT OBSTACLE AWARENESS
|
Detection System
|
Penta Vision obstacle awareness system
|
|
Sensor Technologies
|
High-precision LiDAR • Front and rear millimeter-wave radar • Binocular / fisheye vision
|
|
Environmental Mapping
|
Up to 300,000 points per second
|
|
Effective Detection Range
|
0.1 to 10 m, depending on aircraft speed and operating conditions
|
|
Dynamic Obstacle Avoidance
|
Designed to calculate alternative flight paths automatically to help avoid detected obstacles.
|
|
Suspended Cargo Protection
|
The obstacle avoidance logic is designed to account for the suspended cargo trajectory as well as the aircraft itself.
|
|
AR Assistance
|
Visual alerts can identify pedestrians, vehicles, and objects on the remote controller display.
|
|
Manned Aircraft Awareness
|
DJI AirSense with ADS-B support
|
CARGO & DELIVERY SYSTEMS
|
Cargo Container
|
70 L cargo container system included
|
|
Winch System
|
DJI FlyCart 100 winch system kit with dynamic pulley
|
|
Winch Load Capacity
|
Up to 100 kg
|
|
Retractable Winch Cable
|
30 m
|
|
Parachute System
|
DJI FlyCart 100 Parachute Kit included
|
|
Dual-Battery Lift System
|
Included
|
DB2160 INTELLIGENT FLIGHT BATTERIES
|
Included Quantity
|
2 batteries
|
|
Capacity
|
41,000 mAh
|
|
Nominal Voltage
|
52 V
|
|
Weight
|
Approx. 14.7 kg per battery
|
|
Thermal Management
|
Triple-channel air-cooling system designed for rapid heat dissipation
|
CHARGING SYSTEM
|
Battery Station
|
DJI C12000 Smart Battery Station
|
|
Charging Power
|
Up to 12,000 W according to the provided information
|
|
Compatible Battery
|
DJI FlyCart 100 DB2160
|
|
DB2160 Air-Cooled Heat Dissipator
|
Included
|
REMOTE CONTROLLER
|
Remote Controller
|
DJI RC Plus TKPL 2
|
|
Display
|
7-inch high-brightness LCD touchscreen
|
|
Display Brightness
|
1400 nits
|
|
AR Assistance
|
Supports augmented reality visualization for delivery routes
|
|
Delivery Software
|
DJI Delivery
|
|
Operational Management
|
Supports management of multiple pilots and landing points according to the provided information
|
COMMERCIAL INFORMATION
|
Delivery Lead Time
|
20 business days
|
|
Manufacturer Warranty
|
1 year
|
|
Field Training
|
Included
|
WHAT’S INCLUDED — DJI FlyCart 100 Cargo Drone 2-Battery Combo Kit
|
DJI FlyCart 100 Cargo Drone
|
× 1 |
|
DB2160 Intelligent Flight Battery
|
× 2 |
|
DJI C12000 Three-Phase Smart Battery Station
|
× 1 |
|
DJI RC Plus TKPL 2 Remote Controller
|
× 1 |
|
Remote Controller Charging Cable
|
× 1 |
|
WB37 Intelligent Battery for DJI RC Plus TKPL 2
|
× 1 |
|
100 W USB-C Power Adapter
|
× 1 |
|
USB-C to USB-C Cable
|
× 1 |
|
USB-A to USB-C Cable
|
× 1 |
|
Carrying Harness / Strap
|
× 1 |
|
DJI Cellular Adapter (4D)
|
× 1 |
|
Aircraft Motors / Rotors
|
× 8 |
|
DJI FlyCart 100 Propellers
|
× 16 |
|
Field Training
|
× 1 |
|
70 L Cargo Container System
|
× 1 |
|
Dual-Battery Lift System
|
× 1 |
|
DB2160 Air-Cooled Heat Dissipator
|
× 1 |
|
DJI FlyCart 100 Parachute Kit
|
× 1 |
|
DJI FlyCart 100 Winch System Kit with Dynamic Pulley
|
× 1 |
SOLD SEPARATELY
|
DJI FlyCart 100 Protective Transport Case
|
Not included
|
|
D14000iE Multifunctional Inverter Generator
|
Not included
|
Your purchase includes (Next Level Corp)
• Official DJI product.
• Certified technical support and field training.
• Genuine spare parts availability.
• 1-year manufacturer warranty.
• After-sales support in Bolivia.
SHIPPING
We ship worldwide by air. Tracking information is provided after shipment processing.
DELIVERY
Estimated delivery lead time for this configuration is 20 business days.
