Description

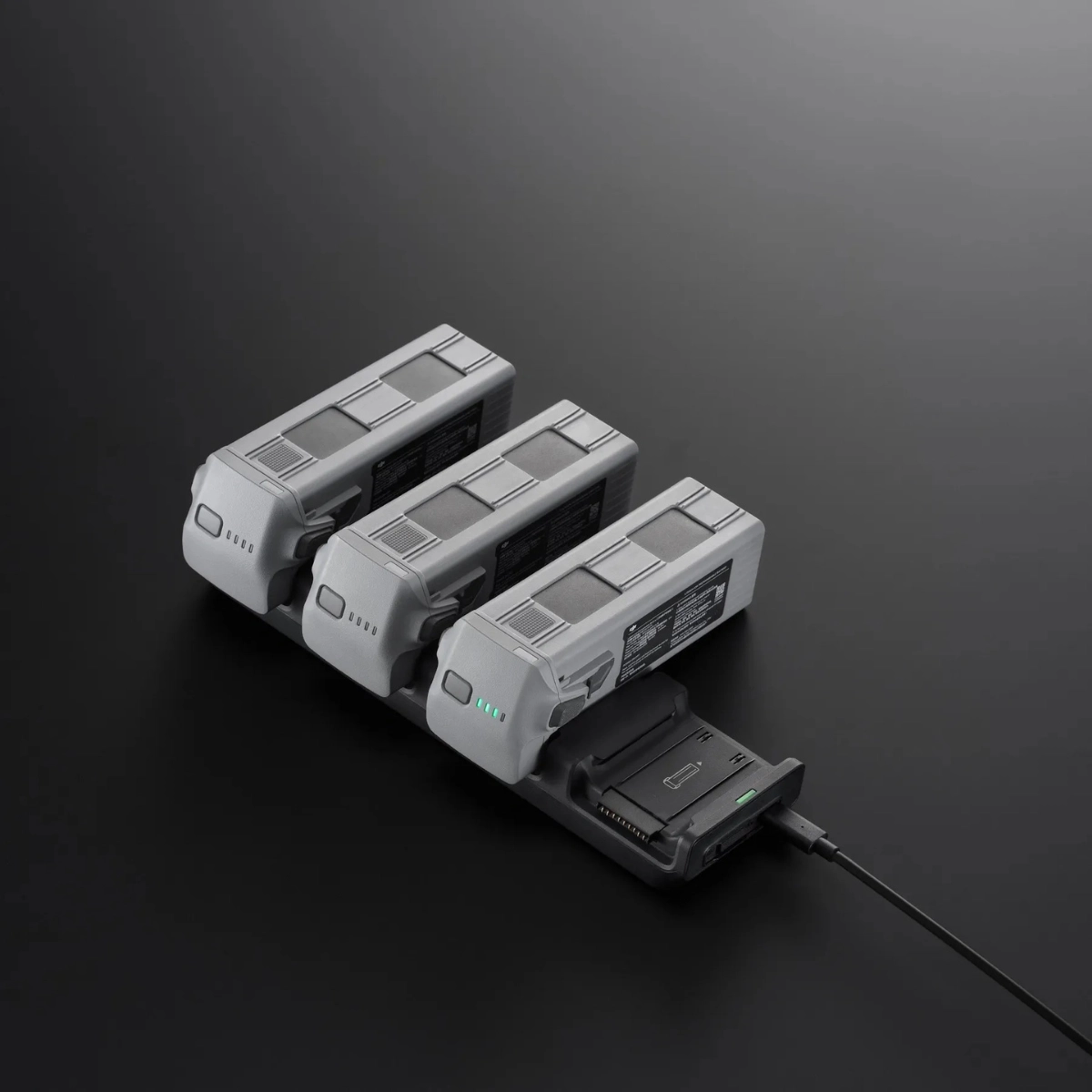

The DJI Matrice 4 Series Charging Hub is designed specifically for DJI Matrice 4 Intelligent Flight Batteries and can charge up to four batteries sequentially, prioritizing batteries from higher to lower charge levels.
It supports both Standard Mode and Ready-to-Fly Mode, allowing operators to choose between full charging to 100% or faster deployment preparation by charging each battery to 90% and maintaining that level.
Compact and purpose-built for professional workflows, the hub is designed to streamline battery management for DJI Matrice 4 Series operations.
SPECIFICATIONS — DJI Matrice 4 Series Charging Hub
|
Model
|
CHX345-100
|
|
Battery Capacity
|
Supports up to 4 batteries sequentially
|
|
Charging Sequence
|
Charges batteries sequentially from higher to lower charge levels
|
|
Standard Mode
|
Charges each battery to 100% in sequence
|
|
Ready-to-Fly Mode
|
Charges each battery to 90% in sequence and maintains that level for rapid deployment
|
|
Compatible Battery Model
|
BPX345-6741-14.76
|
|
Compatible Power Adapter
|
DJI 100 W USB-C Power Adapter
|
|
Input
|
5–20 V, max. 5 A
|
|
Operating Temperature
|
5°C to 40°C (41°F to 104°F)
|
CHARGING MODES
|
Standard Mode
|
Charges each compatible battery to 100% in sequence.
|
|
Ready-to-Fly Mode
|
Charges each compatible battery to 90% in sequence and maintains the battery at that level to support faster operational deployment.
|
|
Sequential Charging
|
The hub charges one battery at a time rather than charging all four batteries simultaneously.
|
COMPATIBILITY
|
DJI Matrice 4 Series
|
Compatible
|
|
DJI Intelligent Flight Battery BPX345-6741-14.76
|
Compatible
|
|
Other Battery Models
|
Not supported
|
IMPORTANT USE NOTES
|
Required Power Adapter
|
The DJI 100 W USB-C Power Adapter is required when using the charging hub to charge Intelligent Flight Batteries.
|
|
Battery Model Restriction
|
Use only with the BPX345-6741-14.76 Intelligent Flight Battery. Do not use the charging hub with other battery models.
|
|
Placement
|
Place the charging hub on a smooth and stable surface during use and ensure the device is properly insulated to reduce fire risk.
|
|
Battery Terminals
|
Do not touch the metal terminals inside the battery ports. If visible dirt is present, clean the battery housing terminals with a clean, dry cloth.
|
WHAT’S INCLUDED — DJI Matrice 4 Series Charging Hub
|
DJI Matrice 4 Series Charging Hub
|
× 1
|
|
DJI 100 W USB-C Power Adapter
|
Required for charging • Not listed as included
|
