Description

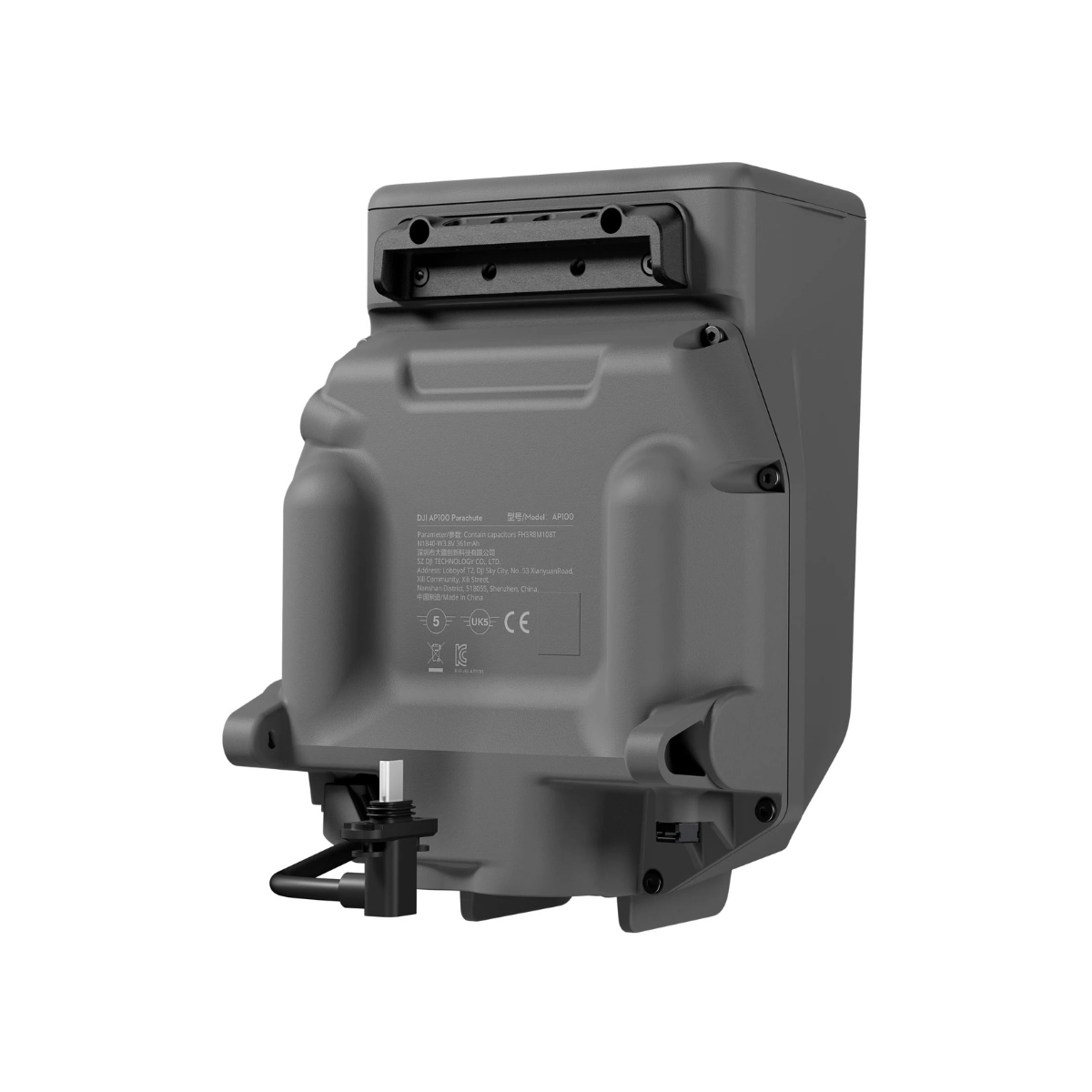

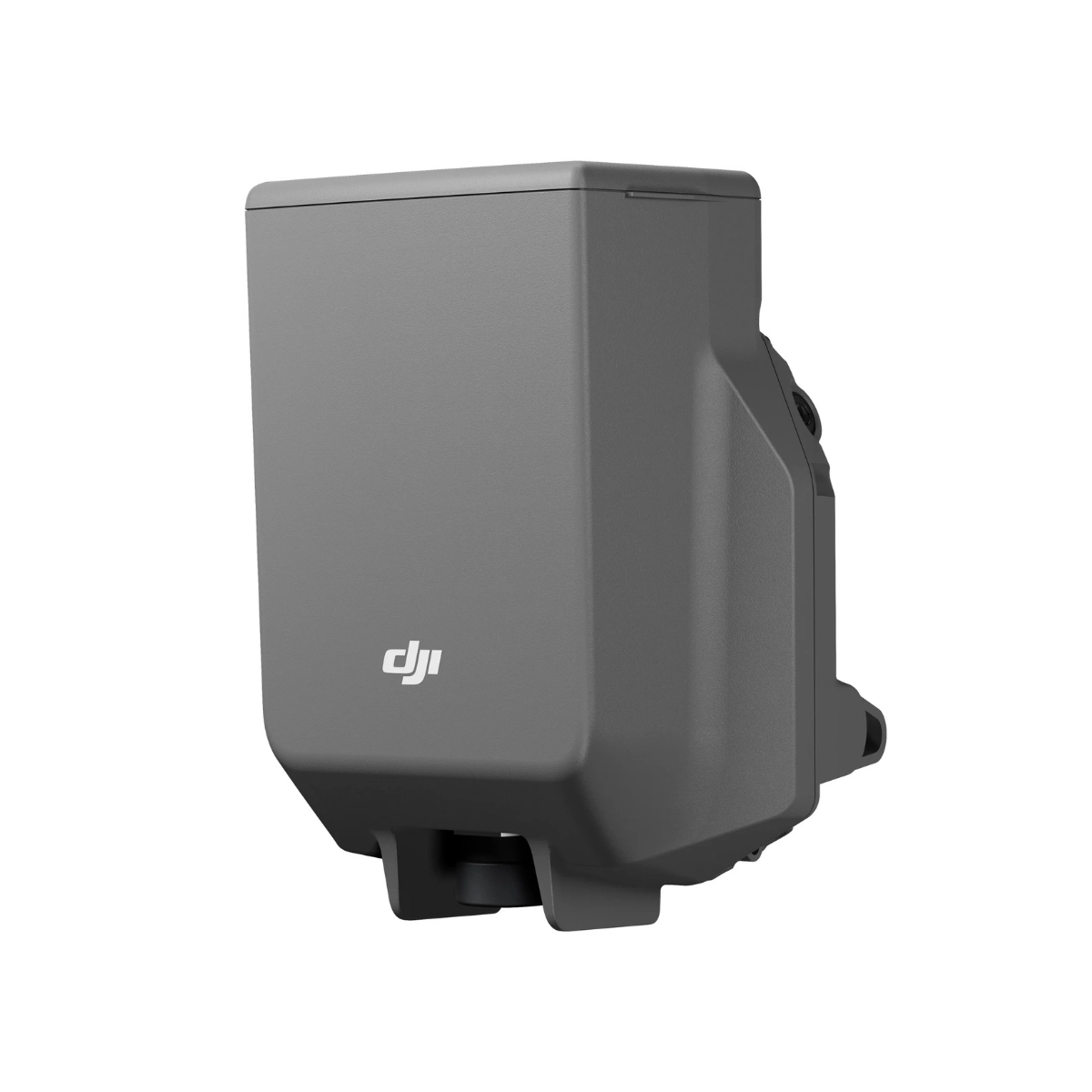

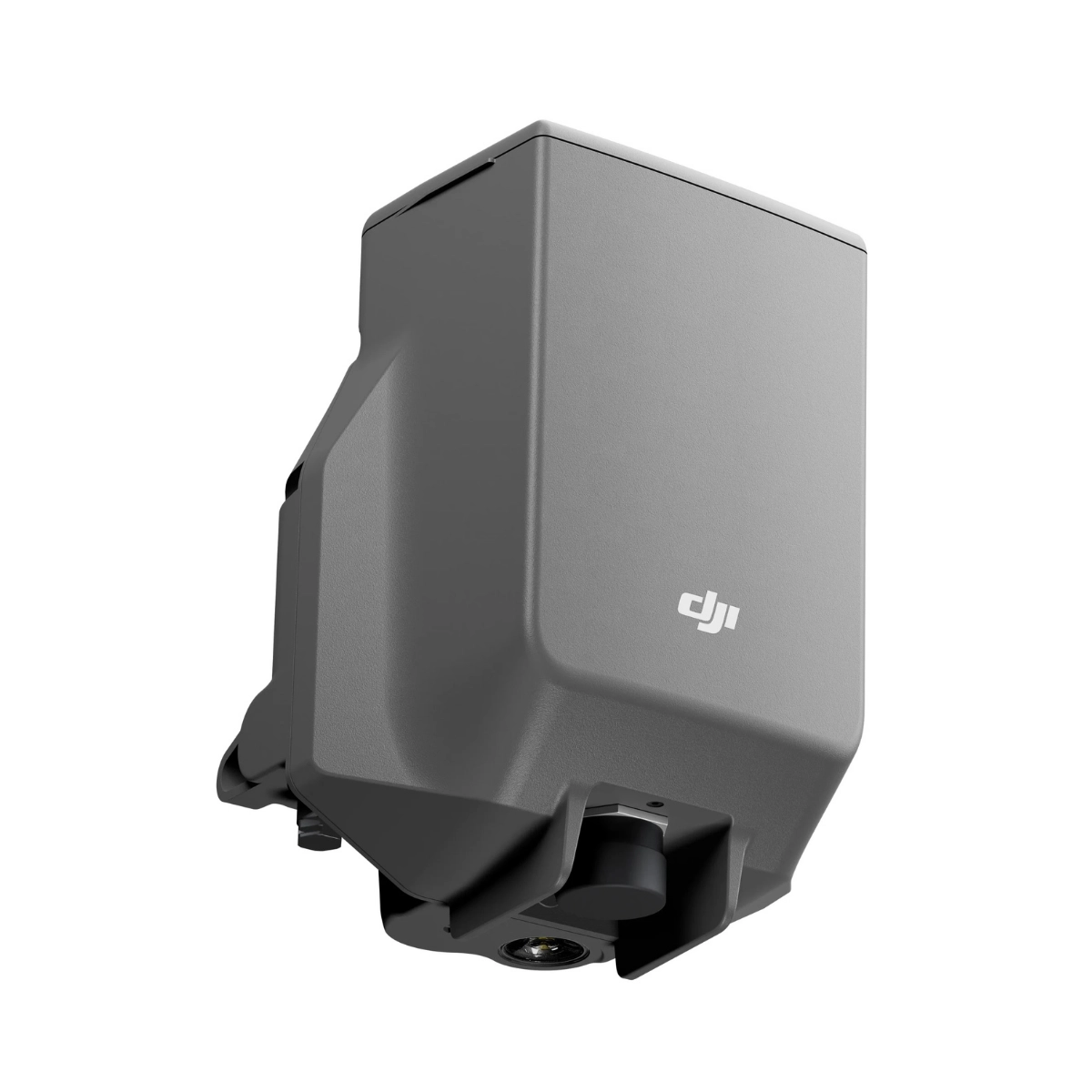

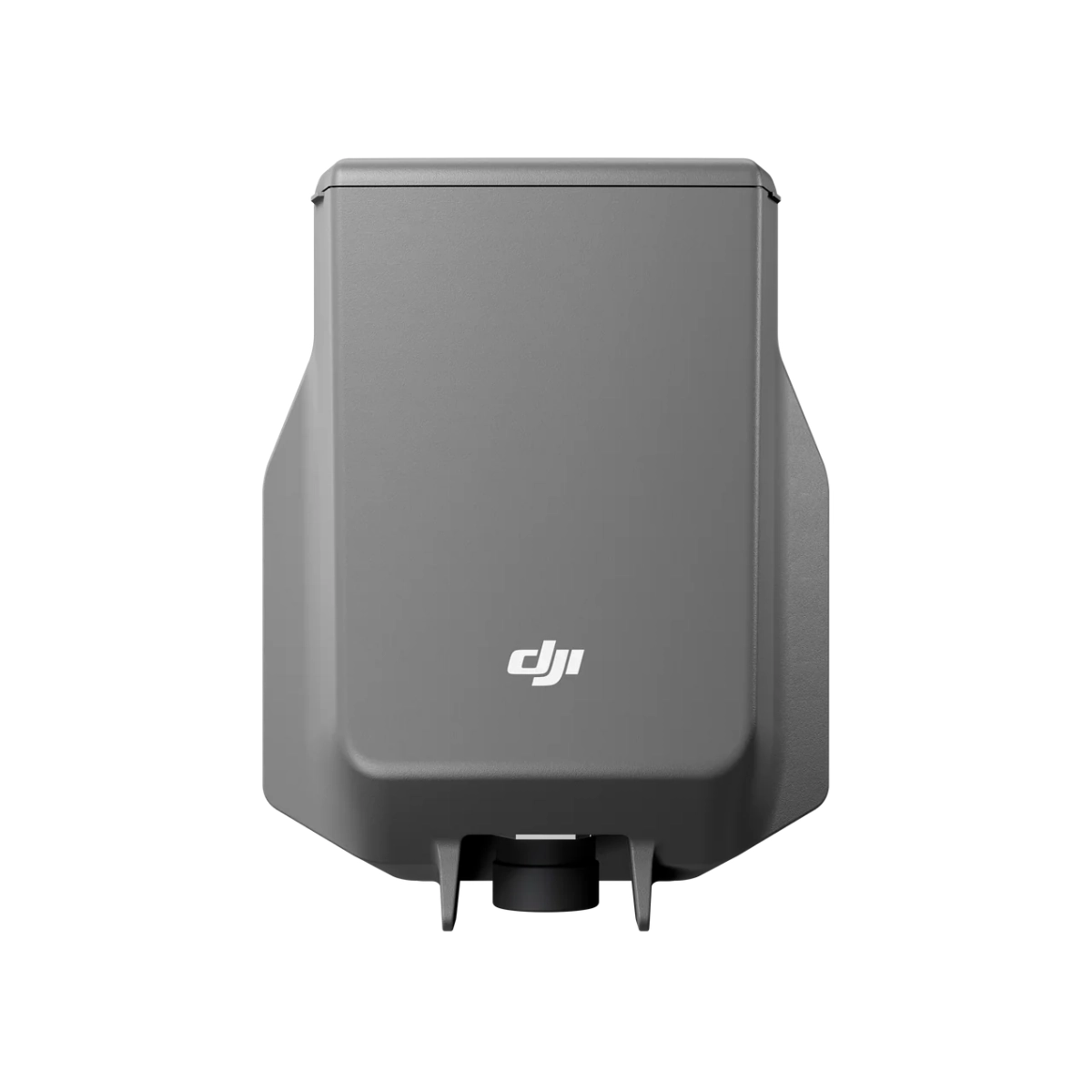

The DJI AP100 Parachute for Matrice 400 is DJI Enterprise’s first dedicated parachute system, designed to enhance operational safety and support regulatory compliance for professional Matrice 400 missions.
Featuring an independent power supply, full-link redundancy, automatic and manual deployment, and an integrated Flight Termination System (FTS), the AP100 can stop the aircraft motors and initiate parachute deployment in less than 600 ms under specified test conditions.

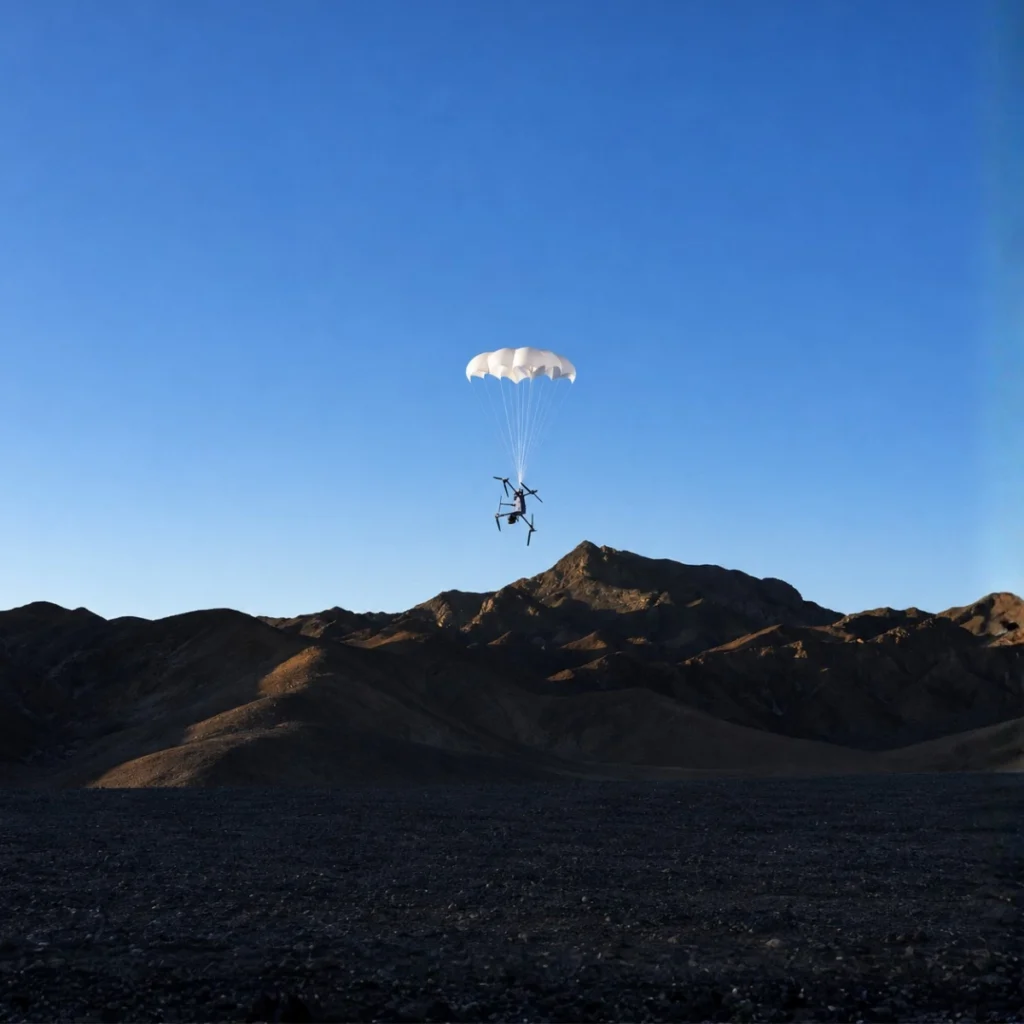

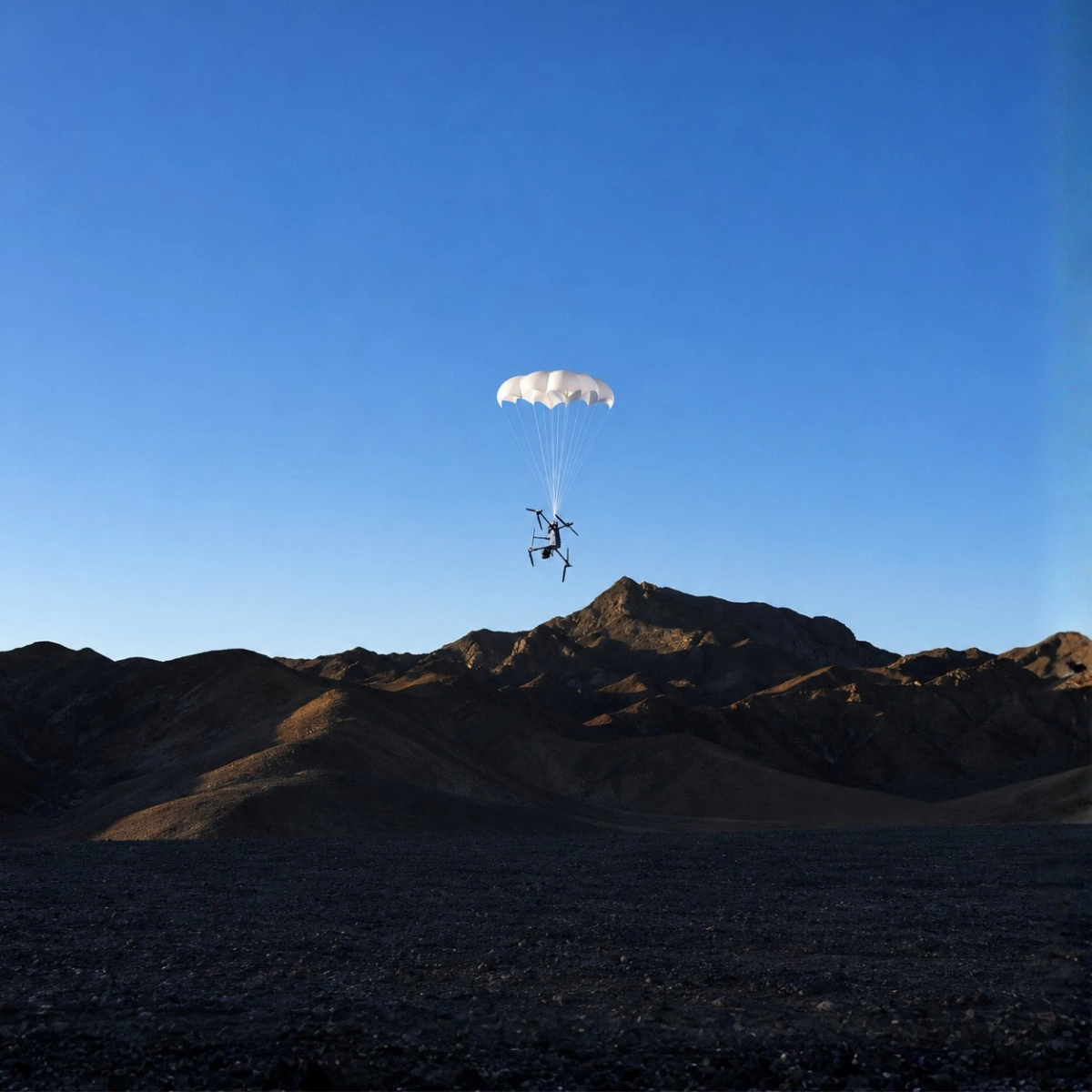

With a minimum effective deployment altitude of 30 meters and a stabilized descent speed below 5 m/s, it is designed to help protect the aircraft, payloads, and reduce ground impact during emergency situations.
SPECIFICATIONS — DJI AP100 Parachute
|
Compatible Aircraft
|
DJI Matrice 400
|
|
Weight
|
Approx. 935 g
|
|
Ingress Protection
|
IP55
|
|
Operating Temperature
|
-20°C to 50°C (-4°F to 122°F)
|
|
Minimum Effective Deployment Altitude
|
30 m
|
|
Response Time
|
Less than 600 ms under specified test conditions
|
|
Stabilized Descent Speed
|
Less than 5 m/s under specified test conditions
|
|
Aircraft Connection
|
E-Port V2
|
|
Deployment Modes
|
Automatic • Manual
|
|
Manual Deployment
|
DJI Pilot 2 • DJI FlightHub 2 where supported
|
|
Automatic Deployment
|
Abnormal flight attitude • Aircraft descent/fall • Geocaging where supported
|
|
Power System
|
Independent power system with 2 capacitors
|
|
Redundancy
|
Independent sensing system • Flight controller and IMU redundancy • Full-link redundancy
|
|
Flight Termination System
|
Integrated FTS with independent motor shutdown link
|
SAFETY & REDUNDANCY
|
Independent Sensor System
|
Uses an independent sensing architecture designed to support emergency detection and parachute deployment.
|
|
Flight Controller & IMU Redundancy
|
Redundant flight controller and IMU architecture helps maintain emergency system reliability.
|
|
Independent Power
|
Two independent capacitors provide dedicated power for the parachute safety system.
|
|
Gas Generator Control
|
Automatic control of the gas generator and deployment communication links.
|
|
Flight Termination
|
The FTS can command independent motor shutdown before parachute deployment.
|
|
Continuous Installation
|

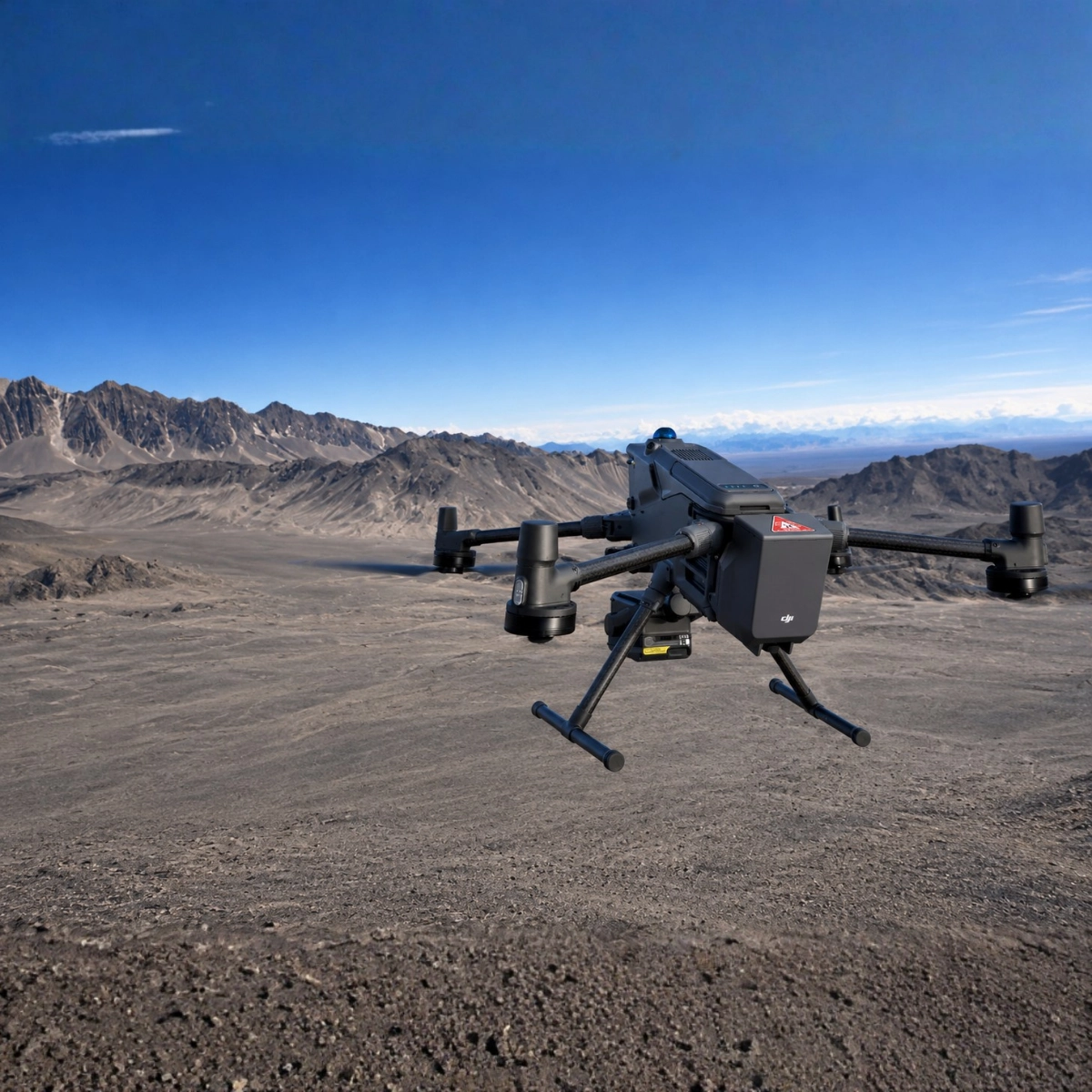

The AP100 can remain installed when the Matrice 400 is stored in its carrying case, reducing the need for repeated installation.
|
REGULATORY & OPERATIONAL SUPPORT
|
C5 / UK5
|
Installing the DJI AP100 on an existing DJI Matrice 400 supports the operational safety requirements for C5 / UK5 applications associated with STS-01.
|
|
C6 / UK6
|
For C6 / UK6 requirements associated with STS-02, the provided information recommends the certified DJI Matrice 400 Worry-Free Plus Combo (C6).
|
|
Validation References
|
MOC 2511 (FTS Validation) • MOC 2512 (Ground Risk Mitigation Validation)
|
|
Certification
|
F3322
|
IMPORTANT OPERATIONAL NOTES
|
Minimum Effective Altitude
|
30 m is the minimum vertical altitude required for the parachute to stabilize aircraft descent below 5 m/s under the specified test conditions.
|
|
Deployment Below 30 m
|
The parachute may still eject below 30 m, but it may not fully inflate in time to adequately slow the aircraft.
|
|
Ground Deployment
|
The parachute will not deploy before the aircraft has taken off.
|
|
mmWave Radar Behavior
|
When the AP100 is installed, DJI Matrice 400 automatically disables its lower and rear mmWave radars to help prevent parachute obstruction and false obstacle detection.
|
|
Obstacle Awareness
|
Detection of small obstacles in the affected lower and rear directions may therefore be limited. Operators should maintain awareness of the surrounding flight environment.
|
|
Gimbal Safety Tether
|
When operating Matrice 400 with the parachute installed, the appropriate gimbal safety tether must be securely attached to the gimbal connector.
|

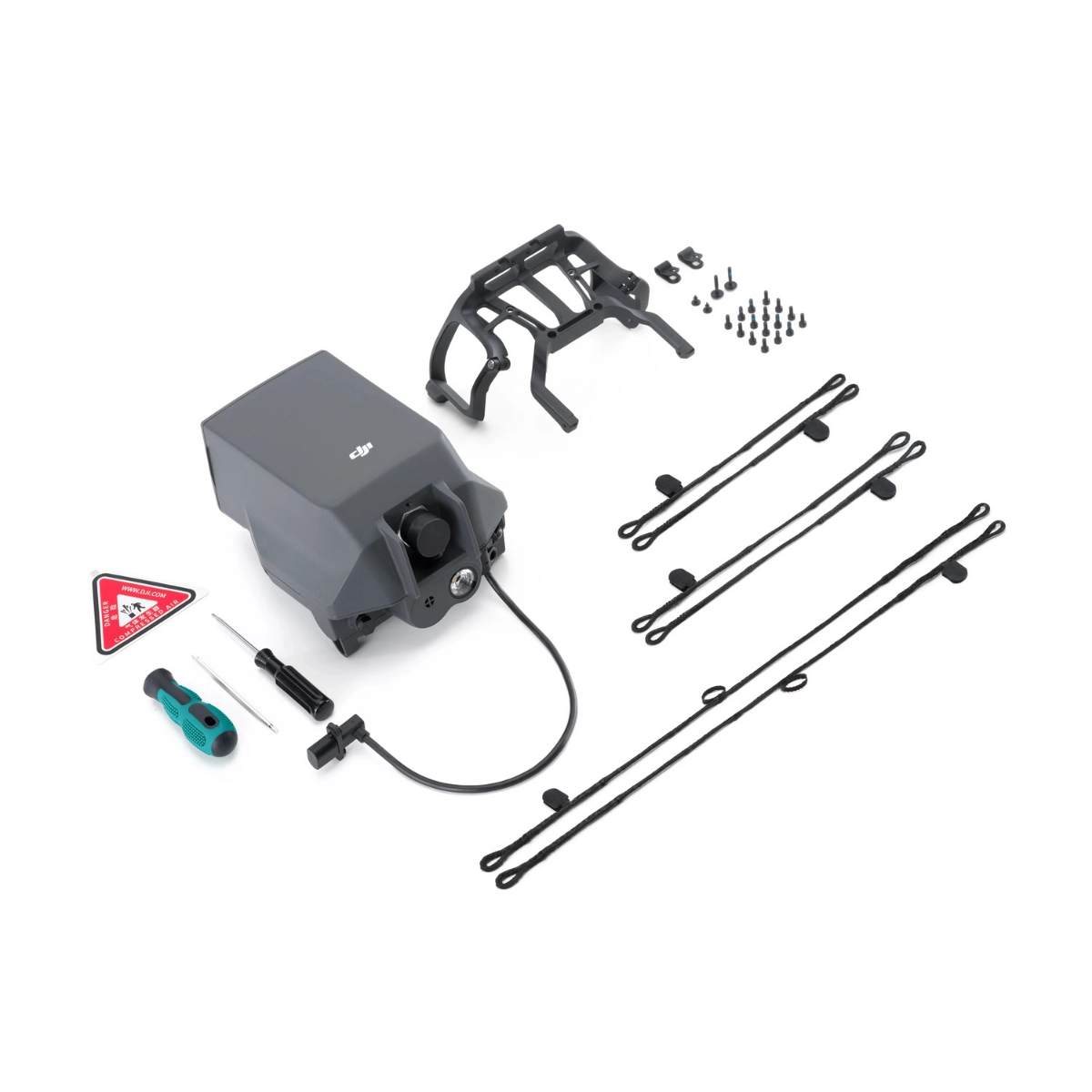

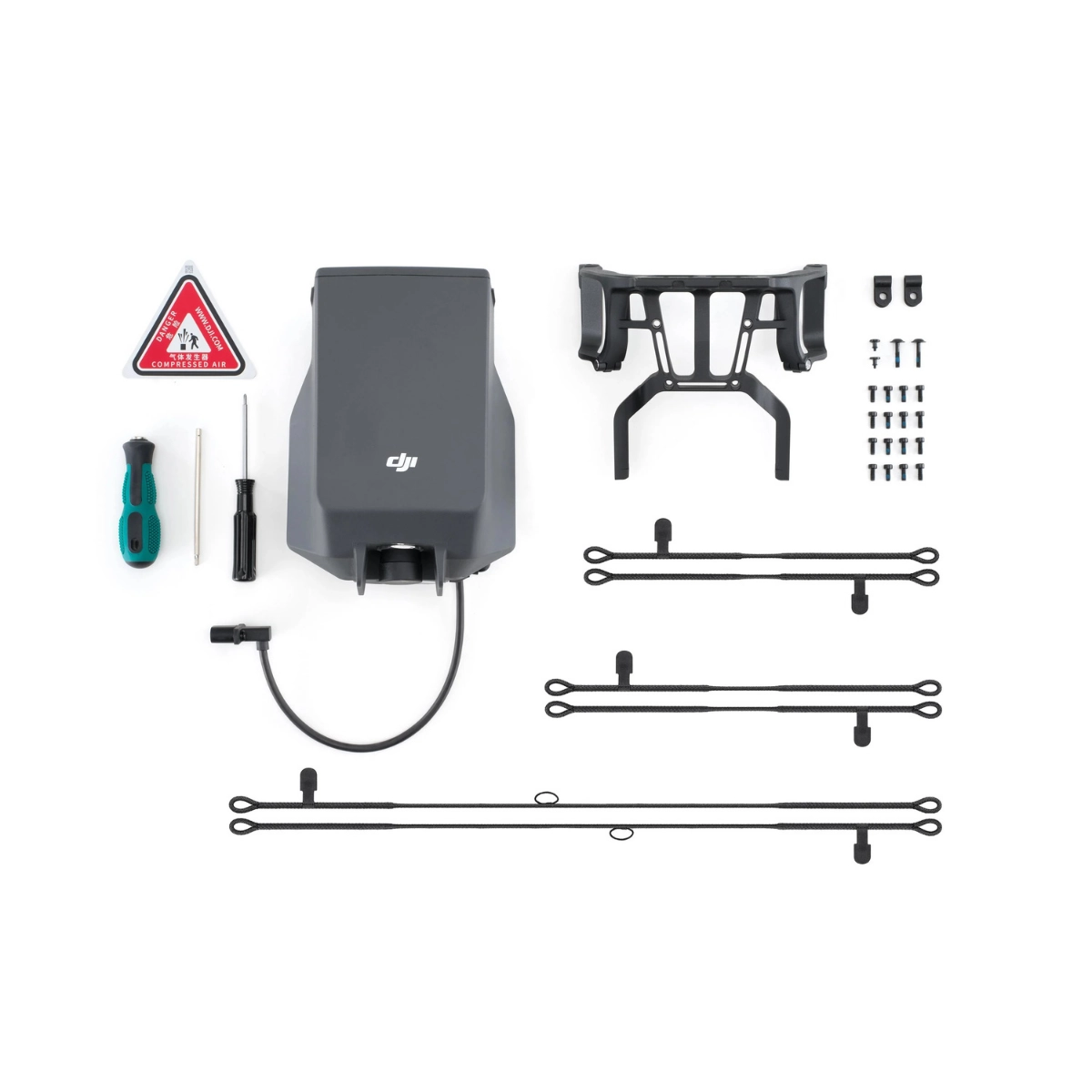

WHAT’S INCLUDED — DJI AP100 Parachute for Matrice 400
|
DJI AP100 Parachute
|
× 1
|
|
Mounting Bracket
|
× 1
|
|
Mounting Bracket Screws M3
|
× 16
|
|
Mounting Bracket Screwdriver
|
× 1
|
|
Mounting Bracket Screwdriver Handle
|
× 1
|
|
Cable Clamps
|
× 2
|
|
Cable Clamp Screws
|
× 2
|
|
E-Port Screwdriver
|
× 1
|
|
E-Port Screws
|
× 2
|
|
Single-Gimbal Safety Tether
|
× 1
|
|
Dual-Gimbal Safety Tether
|
× 1
|
|
L3 Gimbal Safety Tether
|
× 1
|
|

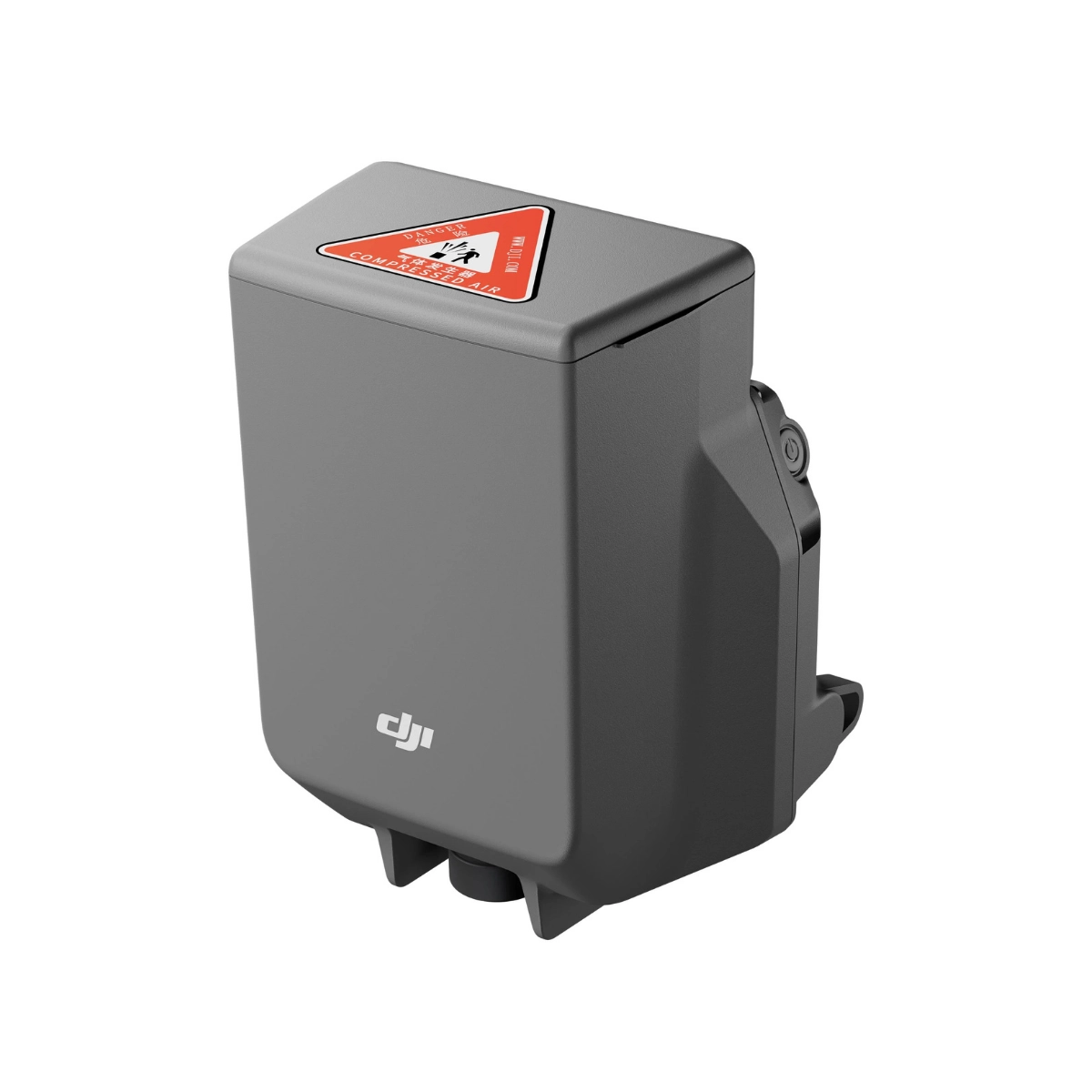

Safety Warning Sticker
|
× 1
|
|
Documentation
|
Included
|
